HeadLightBIG5
Autopure High Power Super LED Head Light for
revolution for the HID car head light
LED conversion kit headlight bulbs for cars trucks and SUVS
ETI Phillips Quality LED Bulbs LED HEADLIGHT BULB led headlight bulbs
TaiwanWhite®
H1
H3 H4 H7 H8 H9 H11 H13 H16 HB1 HB2 HB3 HB4 HB5 9003 9004 9005 9006 9007
CREE - ETINVC LED Car head light 6000K super WHITE clear light
BRIGHT as HID
Draw less power from battery
No Cooling Fan
No need warm up
No need ballasts
No need relay
No more worry ballast die
No error code issue
No Flicker issue
 |
 |
| H4
30W 3000Lm Headlight Bulb Low Beam On DB-Benz |
H4
30W 3000Lm Headlight Bulb High Beam On DB-Benz |
Our
High-quality, high-power 30W 3000Lm each bulb,
LED car headlights made by
the United States CREE ETINVC chip
6063 aluminum alloy accelerate
better heat
dissipation.
Automotive LED head lights advantages
LED lights more power than traditional halogen energy,
Xenon lamp brightness and proximity, but the LED lights light up without delay,
to enhance road safety. instant start no strong currents impact,
effectively
protecting the car battery, improving battery life of more than
30% Fast cooling ,
the appearance of the most advanced design, thermal structure
ingenious and reasonable.
LED power driver with wide voltage constant current mode,
the car
can respond to a variety of voltage instability, the effective protection of
normal use LED efficient and simple structure,
fewer components damaged,
repair the
probability is very low, compared with HID ballast repair lower than 80%
Heating temperature is low, protect the car.
Xenon high working temperature, the standard style HID ballasts are hard starting,
this means when the ballast
fires, it sends full power to the cold bulb.
Over time this shortens the bulb life and
reduces visibility.
Xenon digital ballasts are soft starting, this means when the ballasts fire,
it starts
by sending a low amount of power to
the bulb and steadily increases power over the next minute
until the bulb is to
its maximum brightness.
This gives more life to your HID bulbs, more vivid colors, and gives you more
visibility.
LED car headlights simple structure, fewer parts than Xenon lamps,
significantly
lower than the Xenon lamp failure rates.
Automotive
LED headlights color temperature balancing.
In the same color to
clear of the Xenon bulbs about 6000K.
Warranty
All of our LED Conversion Kits are
covered by a (1)Year Warranty.
The warranty covers any factory
defects with the bulbs.
If the
product stops working within 1-Year from the date you purchased it,
send it
back to us and we will replace the defective item.
It's as easy as that!
Keep in
mind that our defective rate on LED Kits and parts is less than
0.43% so you can feel free to
buy.
Legal situation:
What makes the HID conversion kits illegal is that the halogen headlamps are not
designed to cut-off the
HID light properly, and hence, there is a danger of blinding the oncoming
traffic.
Install
Caution
1. As
a safety precaution, make sure that the car has had time to
cool down properly
before starting the installation process.
2. Put the vehicle into park or make sure it is securely in gear.
3. Make sure to have the ignition turned off and the keys removed.
4. Be careful to avoid burns, especially when turning on or off the vehicles
lighting.
5. Be careful to avoid crushing or cutting the
bulbs.
Also make sure to not touch the bulbs with your fingers, as this will
cause blotting.
6. Fully examine the connection of the contact
points,
ports and the wires as faulty connections can cause lighting problems.
7. Make certain that the end of the bulb does
not come in contact with
the interior light shield of the headlight when
adjusting the bulb.
30W Head
light 2800LM--3000LM IP68
The
2nd Generation Intelligent control LED chip without cooling fan
High heat dissipation performance product.
Super
Quality H4 H7 H11 9005 9006 H1 H3
Not
need Ballasts, Relay and Cooling fan.
H1 H3 H7 H13
H4/9003/HB2
9004/9007/HB1/HB5
9005/HB3/H10
9006/HB4
H8/H9/H11/H16
H4
9004 9007 Bi-beams
H1
H3 H7 H13
H4/9003/HB2
9004/9007/HB1/HB5
9005/HB3/H10
9006/HB4
H8/H9/H11
Working Power：30W
Power 30W X 2 two bulbs 60W
Light Source: USA CREE ETINVC LED
Operating Voltage: 6-70V DC
Waterproof Rate: IP68
Optional Color: Silver
Color Temperature: 4500k /6500K
Housing Material: Aviation Aluminum
Heat Dissipation: Wide Area Of Red Copper and Aviation Aluminum
Lumen: 3000Lm / 3600lM
Life Span: about 30000 hours
Operating Temperature: -40 - +80
Install Space: L40mm X W47mm , L70mm X47mm
Lumen/W: 120Lm/W
Weight: 0.55Kgs/set
H4 Bi-beams far/near headlight bulbs,
ETINVC high power chip, free to modify, it is as simple as replacing light bulbs,
direct change (replacement:
took a photo of original device, after loading in order to change).
Not a HID Xenon lights,
power-saving LED headlights with high light low calorie.
Super power, electricity consumption about
1/3 one-third 35W HID and
1/5 one-fifth of General halogen bulb power consumption.
And a longer lifespan than halogen lamps, HID.
No cooling fan design. Life time More than 30,000 hours ;
not more broken by
failure LED lights fan and the high temperature melting, burning the whole lamp,
Permanent settlement LED heat sink problem.
ETINVC
LED chips special designed for automobile industry, chips on board COB，
High
temperature resistant。
No cooling fan design equipped with 6063Aerostatic
aluminum heat sink，
water proof IP68，Color
temperature 6500K，Power consumption about
1/3 HID and 1/5 general bulb.
http://www.cree.com/LED-Components-and-Modules/Products/
Even in 100-degree heat, and only 5% light attenuation efficiencies.
Launched the
2nd generation of the new LED headlights, generation based on improved a lot,
whether it's brightness, or a cooling effect, there are light-up.

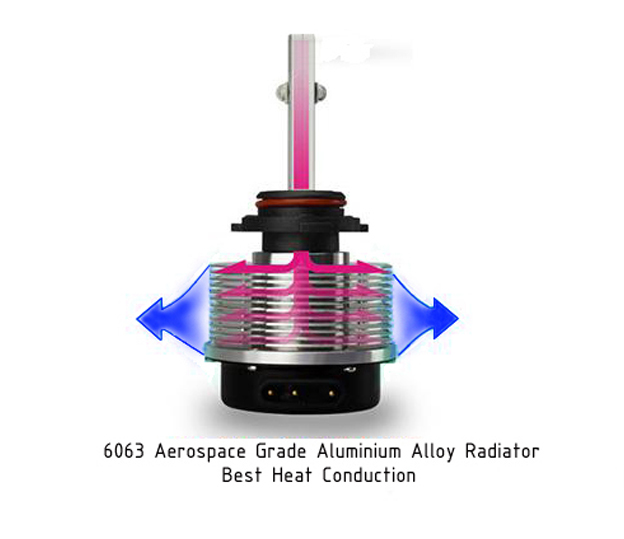

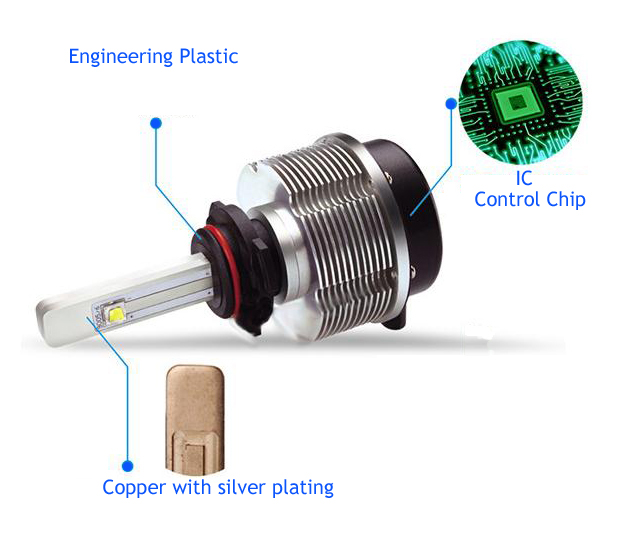

Use a combination of three kinds of metal:
1. Copper (heat conduction rate second only to silver),
2. Silver (speed up conduction velocity),
3. T6 aerospace grade aluminum radiators to form a
meshed structure, best heat conduction.
Radiator heat sink aluminum total area about the size of an A4 sheet of
paper.
More advanced use of professional automotive ETINVC chips (heat resistant up to 150
°C)
become the subject of your car headlights, enjoy luxury car level LED headlamps of superiority.
Don't
know your Bulb size please go to :
http://www.sylvania.com/en-us/applications/automotive-lighting-systems/Pages/lrgmain.aspx
How to install H4 Bi-beams High/Low LED on W124 1996 Mercedes Benz
Removed your HID kits/Stock bulbs
Insert new LED into your Headlight Housing and locked
Connected your H4 LED wire to your stock socket
All connected you are good to go

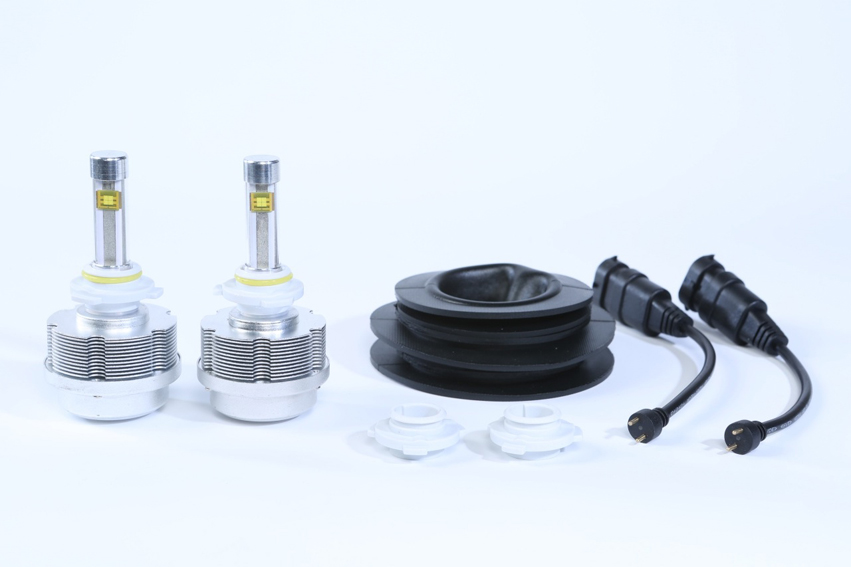

A set of 2
LED headlight bulbs box pack 30Wx2
LightSourceTestReport
Code Error issue: contact us you may need a Code
Decoder
