Metal Corrugated Roofing Sheet, Metal Sheet Plant,

Green fan Green power Green vacuate deflate BUILDING MATERIAL METAL SHEET COLOR ROOFING

SOLAR ATTIC FAN SOLAR POWER SOLAR FAN SUN FAN AERATION FAN GREEN FAN
Solar Roof Vent, Solar Attic Fan, Solar Vent For Metal Corrugated Roofing Sheet, Metal Sheet Plant,
Industrial Plant , Aluminium Sheet, Stainless Steel Sheet Air Ventilator, Roof Exhaust Vent,
Surface Mount exhausting moist air.

Solar Powered Attic Fan - 30 Watt Roof Exhaust Vent - SolarMax® Solar Attic Fan
is a simple and environmentally sensible solution that can protect your home and even save you money.

Powered completely by free solar energy, this sleek and efficient attic vent is compact, quiet and powerful! Simply, the function of a solar attic fan is to improve attic air circulation resulting in a healthy,
energy efficient home.

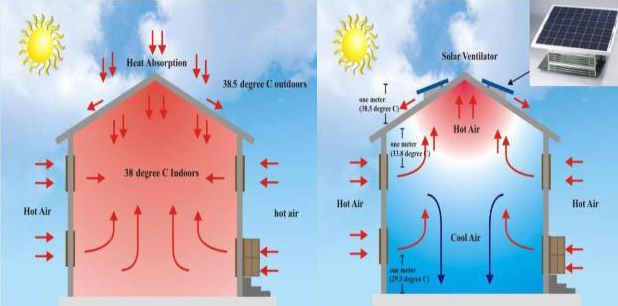

Solar attic fans pull hot air and moisture out of your attic extending the life of your roof.

In summer months, it keeps your attic cooler helping reduce the load on your
HVAC Heating Ventilation Air Conditioning system.
In winter months, it prevents moisture build-up and ice damming.
SolarMax® Solar Attic Fans are one of the best in their class with
the highest standards for quality and functionality.

Application: Solar power attic air ventilator, solar fan for roofing and
cladding corrugated metal sheet of public building, plant, chemical plant and industrial plant.
SolarMax® S30W solar powered attic ventilator as a green product requiring only
energy from the sun and no additional electricity.
Roof mount solar attic fan help reduce energy usage by exhausting hot air from attics by
using a solar powered attic fan. Reduce potential mold and increase roof life by exhausting moist air.
A whisper quiet 24 volt brush less motor blower powered by an industrial grade 30 watt solar panel.
Unit will condition up to 2500 square feet.
Powered by solar energy, there is zero cost usage and it does not require an electrician to install.
Wire mesh keeps unwanted rodents out.
Limited 2 year warranty on the fan and 20 year warranty on the solar panel.
Features of the SolarMax® Solar Powered Attic Fan - Roof Exhaust Vent
Capacity: 30 watt: up to 1550 cfms (2500 sf)

Product Features
30 watt solar panel captures sunlight from dawn to dusk and efficiently converts it into
electric power to keep your attic cool and dry all day long, providing
5.20 Maximum CFM (M³) and year round protection for the structure of your home
8-24V 0.55A 2700RPM motor with 10" one-piece aluminum fan is pitched for
maximum air flow 5.2M³ to keep your living area cooler, extend the life of your
air conditioner and save energy and money
Compact base footprint means metal sheet styles to cut for easier, faster installation
Low profile, integrated design for an attractive, unobtrusive addition to
your roof without the need for props or pivoting stands
Rugged, tempered glass solar panel withstands large hail and won't delaminate so
you can be confident in its reliability, functionality and attractive appearance
Housing is a molded stainless steel design that withstands hail and resists fading to
remain attractive for years.
Housing frame features positive stops to seat the dome for fast, easy installation
Direct-current, variable voltage motor is dynamically balanced for
superior performance and silent operation for years of worry-free operation
Includes stainless steel fasteners and brackets for durability and corrosion resistance, and
aluminum, heavy-gauge screen to keep out insects, animals or birds without impeding airflow
Optional thermostat is easy to install and disables the motor when the temperature dips
below 50-degrees, to extend motor life; recommended
for climates where cold weather condensation isn't a concern

Roof Opening Width:	L 11.20” x 9.75”	Installation Type:	Roof Mounted
SolarMax Dimensions:	13.45" x 10.25" x 4.75"	Power Type:	Solar Powered
Height from Roof:	4.75"-8"	Insect/Critter Screen:	Optional /Yes
SolarMax Material:	Stainless Steel	Solar Panel Watts:	30W
Housing Dimensions:	23.3" x 23.3"	Motor:	DC 24V
Fan:	High Efficiency Low Noise Sirocco Fan Blower	Solar Panel:	Mono Crystalline Silicon Cells

Solar Max®	S50W	S30W	S15W
Motor	50W	30W	15W
Dimension	800mm x 800mm	500mm x 500mm	400mm x 280mm
Exhaust Value	5.2M3	4.2M3	3.0M3
Noise	60dB(A)	52dB(A)	40dB(A)
Solar Module	50W	30W	15W
Install Dimension	L640xW670xH300mm	L500xW500xH300mm	L410xW410xH300mm
VPM-Peak Power Voltage	24V	24V	24V
IPM-Peak Power Current	1.88A	1.74A	1.5A
LSC-Open Circuit Current	2.01A	2.01A	2.01A
Module Efficiency	12.02%	12.02%	12.02%
Weight	5Kgs	5Kgs	4Kgs
