EagleFly™ Flexible Corrugated Hose

STAINLESS STEEL DENSE CORRUGATED HOSE

High flow stainless steel hose -

stainless steel flexible corrugated hose -

high flow flexible stainless steel - hot water stainless steel hose -

high pressure hose can be arbitrarily bent and
stretched stainless steel corrugated hoses.

NON-STAINLESS STEEL WIRE MESH BRAIDED INSERT PLASTIC TUBE HOSE



Products are manufactured using stainless steel 304, 316L stainless
steel integral body with high corrosion resistance, high temperature
resistance, low temperature resistance, high pressure resistance and
perfect mechanical properties features.
Using advance ARC welding methods, accurate welding nuts
inside and outside on the pipe body. Tapered thread has a perfect seal,
make the hose in the fluids and gases more secure use.
Such tubes are widely used in liquid system, natural gas transportation,
inner pipe and kitchen equipment.



Profile "U" standard pitch of waves distance so that pipes can be
adapted to higher pressure ratings and softness, In addition the surface

may also be PVC material covered, it can more effectively against corrosion

and protection of damage from outside, tube uses an unique patent design,

high around folding, stability, easy to install.

Length: 7--40000cm



This hot water large-flow high pressure stainless steel corrugated hose,
There are a variety of sizes, texture, better bending tensile toughness
and with high flow large-diameter pipe, bid farewell to the old small-
flow pipe diameter hoses. Integral body inner tube diameter I.D. 12mm
is different from the general market for stainless steel wire mesh
braided in plastic hose diameter I.D. 6mm

Durable, winding, high temperature, high pressure, twists and turns,
rubber and plastic free advanced hose. This stainless steel high flow and
high pressure hose can be bent and stretching more then a total length of 50%,
the replacement of hose no more laborious and time-consuming, and will not
abruptly bent the pipe broken.

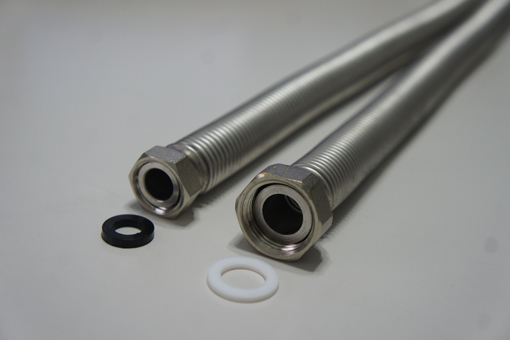

AISI 304 Extendable dense corrugated hose, AISI 304 Joint and Male, Brass nickel plated Female nut, Silicone/PTFE Gasket. Thickness:0.20mm  OD.18mm ID.12mm/O.D.22.80mm I.D.16mm
4FF-20 FF½"-20cm
4FF-23 FF½"-23cm
4FF-30 FF½"-30cm
4FF-36 FF½"-36cm
4FF-46 FF½"-46cm
4FF-61 FF½"-61cm



AISI 304 Not Extendable dense Corrugated hose, AISI 304 Joint and Male, Brass nickel plated Female nut, Silicone/PTFE Gasket. Thickness:0.16mm OD.18mm ID.12mm
7FF-20 FF½"-20cm
7FF-23 FF½"-23cm
7FF-30 FF½"-30cm
7FF-36 FF½"-36cm
7FF-46 FF½"-46cm
7FF-61 FF½"-61cm

4(½") , 6(¾") Length: 20/25/30/36/46/60cm.....

Item No. Dimension (mm)

BM001

DN O.D. I.D. FF FM L
15 18 12 1/2" 1/2" 200
15 18 12 1/2" 1/2" 250
15 18 12 1/2" 1/2" 300
15 18 12 1/2" 1/2" 360
15 18 12 1/2" 1/2" 460
15 18 12 1/2" 1/2" 600
20 22 16 1/2" 3/4" 600
20 22 16 3/4" 3/4" 600
25     1" 1" 2000--4000
32     1-1/4" 1-1/4" 2000--4000
40 50.90 38 1-1/2" 1-1/2" 2000--4000
50     2" 2" 2000--4000
Explode Pressure More than 10 Mpa
Test Pressure 0.8 Mpa -- 1 Mpa
Work Pressure 0.6 Mpa or Less



Installation:
1.First of all, open the packaging plastic bag, remove the hose
  and 2 piece silicone gaskets.
2.Use stainless steel hose length measure to be installed by distance
  Longer -  you can bend stainless steel hose to fit the installation
  Shorter – you can average stretch the seat of stainless steel hose
            compared to an appropriate installation length
3.Place 1 piece silicone gasket at each end, slightly to activities or
  locked with a wrench
4.You need to install the hex nut into pipe flange, tighten the nut to
  avoid silicone gasket caused by breakage.



Customized:12cm Specification
06F10F-12 3/4"Fx1"F x 12cm
06F10M-12 3/4"Fx1"M x 12cm
06M10M-12 3/4"x1" x 12cm
10F10F-12 1"Fx1"F x12cm
10M10M-12 1"Mx1"M x12cm
10F15F-12 1"Fx1-½"F x12cm)
10M15M-12 1"Mx1-½"M x12cm



Customized:    31--35cm Specification Thickness:0.25mm
15F15F-28 1-½"Fx1-½"F x 28cm
15F15F-31 1-½"Fx1-½"F x 31cm
15F15F-35 1-½"Fx1-½"F x 35cm

Stainless steel flexible hose F1/2"XF9/16"X46CM
for Bell & Gossett Xylem
  Autocirc Instant hot water pump
LHB08100093 BR-25 Adjustable Thermostat E1-BCANRT1W-06 ACT E1  and
605E7000 BR-26A ACT E10



The measurement method of Customized lengths


Customer DIY Made-To-Order
20M 30M 50M per roll

LM001
DN
10
15
20
25
32
SIZE
3/8"
1/2"
3/4"
1"
1¼"
LENGTH
5M/10M/15M/20M/30M-->50M



LM001
ID mm
6
7.30
9.30
12
16
OD mm + -0.2
8.60
10
12
18
22.80
LENGTH
5公尺/10公尺/15公尺/20公尺/30公尺-->100M
