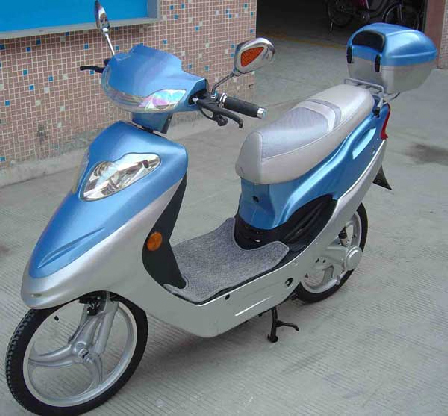

Autopure®  e-motorcycle

Specifications: I. Complete Bike

Overall dimensions: 1780*670*1120 mm

Gross weight: 108 KGS

Package size:  1620*570*830 mm

Load:  160 KGS

Wheel base: 1170 mm

Max speed:  45 km/hr

10 inch Wheel

Range:  60 km

Net weight:  97 KGS

Electric consumption per 62 miles :< 3kw.hr >

II . Battery

Full sealed free maintenance lead-acid

 Capacity: 22 Ah 48V

¡@

III .  Motor

Drum, Brush-less

Rated output power: 500W

Rated turning speed: 580r/min

Rated voltage: 48V

Torque: 11N.m

Efficiency : ¡Ö80%

¡@

IV. Controller

insufficient voltage protection value point : 42¡Ó1V

Over current protection value point :  25¡Ó1A

¡@

V. Re-charger

Input Voltage: AC 110~220V¡Ó10%

Output Voltage: DC 56¡Ó0.5V

Charging time: 8-10h



VI. Color

Sky Blue/White Rouge, Red/White, Flash blue/White, Orange/White, Green/White

¡@

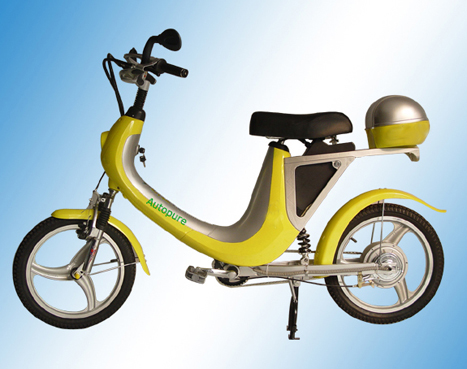

Autopure®  e-cycle

¡@

I . Complete Bike

Overall dimensions: 1670X660X1110 mm Gross weight: 70 Kgs
Package size:  1675X345X845 mm Load: 75 Kgs
  Wheel base: 1100 mm Max speed: 28 km/hr
Alloy  wheel:  18 inch Range: ≤60 km (one battery ); 105 km ( two batteries )
Net weight: 60 Kgs Electric consumption per 62 miles :< 3kw.hr>

¡@

I . Complete Bike

Overall dimensions: 1530X280X950 mm Gross weight: 70 Kgs
Package size:  1675X345X845 mm Load: 75 Kgs
  Wheel base: 1100 mm Max speed: 28 km/hr
Alloy wheel:  18 inch Range: ≤60 km (one battery ); 105 km ( two batteries )
Net weight: 60 Kgs Electric consumption per 62 miles :< 3kw.hr>
Rear & Front disk brake Dual disk brake rear & front

¡@

II . Battery

6FM12-14D

Full sealed free maintenance lead-acid

Capacity: 10 Ah

Standards Voltage:  48 V

¡@

III. Motor

Permanent Direct Current Brush-less Motor

  Rated output power: 250 W

Rated turning speed: 360 r/min

Rated voltage: 48 V

Torque: 7.3N.m

Efficiency : ¡Ö80%

¡@

IV. Controller

Insufficient voltage protection value point : 31.5¡Ó1V

Over current protection value point :  13¡Ó1A

¡@

V. Recharge

Input Voltage: AC 110~220V 50~60Hz

Output Voltage: DC 44v

Charging time: 6-10hr

¡@

VI. Color

Silver/Rouge Red-Silver/Pearl White/ Orange-Silver/Green-Silver/Sky blue-Silver

II . Battery

6FM12-14D

Full sealed free maintenance lead-acid

Capacity: 12 Ah

Standards Voltage:  36 V

¡@

III. Motor

Permanent Direct Current Brush-less Motor

  Rated output power: 250 W

Rated turning speed: 360 r/min

Rated voltage: 36 V

Torque: 7.3N.m

Efficiency : ¡Ö80%

¡@

IV. Controller

Insufficient voltage protection value point : 31.5¡Ó1V

Over current protection value point :  13¡Ó1A

¡@

V. Recharge

Input Voltage: AC 110~220V 50~60Hz

Output Voltage: DC 44v

Charging time: 6-10hr

¡@

VI. Color

Silver/Rouge Red-Silver/Pearl White/ Orange-Silver/Green-Silver/Sky blue-Silver
