Autopure® MicroFilt™ 經濟型 空氣壓縮機 精密過濾器
更換舊有過濾氣器取代以經濟型精密過濾器
簡易DIY自行定期更換消耗性濾芯
節約基本工廠消耗
1英吋風壓管精密過濾器: (1管除水濾雜質1μm，1管濾油0.1ppm) : Micro Filter 2管一套NT$12000/set
另購備份替換 I，II，III 級精密過濾器濾芯 每芯 - NT$1000/pc
訂購專線 02-23657700 e-mail: autopure@ms3.hinet.net
鋁合金-不銹鋼外殼精密過濾器
1.最大工作壓力 1.60Mpa 工作溫度1-65ºC
2.雙面壓差表,指示更換濾芯最佳時間
3.液面指示器,用於目視監測液面高低
4.内置自動排污閥--自動排液裝置Inside automatic draining valve

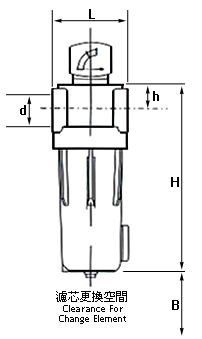

| 型號 | 流量 | 尺寸 Specification | 等級 |
濾心 Filter Element |
等級 | |||||
| Item | Flow Rate | d | L | h | H | B | Grade | Quantity | Type | Grade |
| 1-8926-231 | 1 | G½ | 89 | 26 | 231 | 126 | I | 1 | 10 | I |
| 15-8926-231 | 1.5 | G¾ | 89 | 26 | 231 | 131 | 1 | 15 | ||
| 36-12040-299 | 3.6 | G1 | 120 | 40 | 299 | 170 | 1 | 36 | ||
| 48-12040-399 | 4.8 | G1½ | 120 | 40 | 399 | 210 | II | 1 | 48 | II |
| 72-12040-399 | 7.2 | G1½ | 120 | 40 | 399 | 270 | 1 | 72 | ||
| 87-12040-399 | 8.7 | G1½ | 120 | 40 | 399 | 270 | 1 | 87 | ||
| 120-16050-463 | 12 | G2 | 160 | 50 | 463 | 320 | III | 1 | 120 | III |
| 160-16051-663 | 16 | G2 | 160 | 51 | 663 | 420 | 1 | 160 | ||
| 200-16051-863 | 20 | G2 | 160 | 51 | 863 | 620 | 1 | 200 | ||
| 240-21665-660 | 24 | G2½ | 216 | 65 | 660 | 420 | IV | 1 | 240 | IV |
| 320-21665-750 | 32 | G3 | 216 | 65 | 750 | 520 | 1 | 320 | ||
| 400-21665-620 | 40 | G3 | 216 | 65 | 620 | 620 | 1 | 400 | ||
| 濾芯等級1: Grad I | Pre filter細濾(V) | II級前置過濾,去除2μm以上粒子,除水效率95%以上,殘餘含油量≤2ppm w/w 初始壓差:0.01MPa濾芯更換壓差:0.07MPa |
| 濾芯等級2: Grad II | Micro filter微濾(A) | III級前置過濾,去除1μm以上粒子,殘餘含油量≤0.1ppm w/w 初始壓差:0.01MPa濾芯更換壓差:0.07MPa |
| 濾芯等級3: Grad III | Super-precision filter超精濾(B) | IV級和吸附式前置過濾,去除0.1μm以上粒子,殘餘含油量≤0.01ppm w/w 初始壓差:0.012MPa濾芯更換壓差:0.07MPa |
| 濾芯等級4: Grad IV | Active carbon filter活性炭濾(C) | 除油蒸氣和碳氫化合物f氣味,殘餘含油量≤0.003ppm w/w 初始壓差:0.02MPa使用1000小時後更換 |
| 濾芯等級5: Grad V | Sterilizing filter無菌濾(D) | 除菌過濾器,阻擋細菌,並定時120ºC蒸汽滅菌,濾芯可再生使用50次 |
濾芯等級:
Grad: I
Pre filter細濾 Grade: II
Micro
filter微濾 Grade: III Super-precision- Filter超精濾
Grade: IV Active carbon Filter活性炭濾
Grade: V Sterilizing Filter無菌濾
ＰＵ、ＰＥ管須具有耐磨耐扭壓、耐油、耐化學藥
劑、耐酸鹹之特性，廣泛應用在各種空壓自動化傳動工業上
|
PE Tube - PE噴漆塗料管 |
 |
|
No.
|
O.D.
外徑(mm)
|
I.D.
內徑(mm)
|
LENGTH
米/卷(m/roll)
|
| PE-0420 |
Ø4
|
Ø2
|
200
|
| PE-0425 |
Ø4
|
Ø2.5
|
200
|
| PE-0640 |
Ø6
|
Ø4
|
100
|
| PE 1/4 |
Ø6.3
|
Ø4.6
|
100
|
| PE-860 |
Ø8
|
Ø6
|
100
|
| PE 3/8 |
Ø9.5
|
Ø7
|
100
|
| PE-1075 |
Ø10
|
Ø7.5
|
100
|
| PE-1290 |
Ø12
|
Ø9
|
100
|
| PE 1/2 |
Ø12.7
|
Ø9.5
|
100
|
|
PU PNEUMATIC TUBE - PU空壓管 |
 |
|
No.
|
O.D.
外徑(mm)
|
I.D.
內徑(mm)
|
BREAK-PRESSURE
|
LENGTH
米/卷(m/roll)
|
|
PU-0425
|
Ø4
|
Ø2.5
|
24kg/cm²
|
200
|
|
PU-0530
|
Ø5
|
Ø3
|
24kg/cm²
|
200
|
|
PU-0640
|
Ø6
|
Ø4
|
24kg/cm²
|
200
|
|
PU 1/4"
|
Ø6.3
|
Ø4
|
24kg/cm²
|
200
|
|
PU-0850
|
Ø8
|
Ø5
|
24kg/cm²
|
100
|
|
PU-0860
|
Ø8
|
Ø6
|
18kg/cm²
|
100
|
|
PU 3/8"
|
Ø9.5
|
Ø6.5
|
24kg/cm²
|
100
|
|
PU-1065
|
Ø10
|
Ø6.5
|
24kg/cm²
|
100
|
|
PU-1180
|
Ø11
|
Ø8
|
22kg/cm²
|
100
|
|
PU-1280
|
Ø12
|
Ø8
|
24kg/cm²
|
100
|
|
PU 1/2"
|
Ø12.7
|
Ø9.6
|
20kg/cm²
|
100
|
|
PU-1613
|
Ø16
|
Ø13
|
24kg/cm²
|
100
|
|
NYLON TUBE - Nylon尼龍管 |
 |
|
No.
|
O.D.
外徑(mm)
|
I.D.
內徑(mm)
|
BREAK-PRESSURE
|
LENGTH
米/卷(m/roll)
|
|
NY-0420
|
Ø4
|
Ø2
|
99kg/cm²
|
200
|
|
NY-0425
|
Ø4
|
Ø2.5
|
70kg/cm²
|
200
|
|
NY-0640
|
Ø6
|
Ø4
|
55kg/cm²
|
100
|
|
NY 1/4
|
Ø6.3
|
Ø4.6
|
45kg/cm²
|
100
|
|
NY-0860
|
Ø8
|
Ø6
|
50kg/cm²
|
100
|
|
NY 3/8
|
Ø9.5
|
Ø7
|
45kg/cm²
|
100
|
|
NY-1075
|
Ø10
|
Ø7.5
|
50kg/cm²
|
100
|
|
NY-1290
|
Ø12
|
Ø9
|
50kg/cm²
|
100
|
|
NY 1/2
|
Ø12.7
|
Ø9.5
|
50kg/cm²
|
100
|
