® Slimline™ wheel cover manufacturer since 1982
Pizza Hub Cap
Unbreakable Wheel Cover
Upon Order Confirmed, You Had Earned 50% Freight Amount
One day all wheel cover will be made in this way
|
With chrome nuts decoration | Without chrome nuts decoration | NEW OUTER RIM CLIP ON RETENTION |

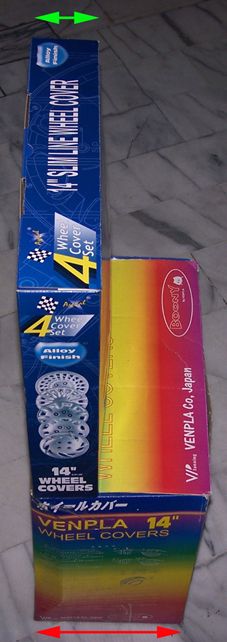

Slimline™ COLOR BOX PACK | Slimline™ 4 pcs/set COLOR BOX | 9753/9754/9755 color box pack | 9763/9764/9765 plain brown box pack | Primary / Virgin Material |
SlimLine™ Installation
1. The last two numbers on your tire will indicate proper wheel cover size
(12",13",14", 15", 16"
and 17"). See Fig. 1
Example: A tire with a size code of 15 inch
uses a 15 inch wheel cover |
|
2. Remove used wheel cover (hubcap) from
wheel rim. Ensure the mounting-clips are seated firmly within the wheel cover blocks. See Fig. 2 |
|
3. Position the new wheel cover on wheel rim and guide the tire valve stem
through a slot in the wheel cover. Make sure all the wheel cover mounting-clips (4 or 5 clips) fit over the wheel rim. See Fig. 3 |
|
4. Holding the wheel cover firmly in place, locate the mounting-clips of
the wheel cover.
Use the rubber mallet to tap the outer edge of the wheel
cover mounting-clip until it is
seated firmly against the wheel rim. See
Fig. 4 |
|
5. Repeat step 4. for each wheel cover mounting-clip until all the
mounting-clips are
seated firmly against the wheel rim. |
|
6. Use the tack puller or the slotted screwdriver to pry free each mounting clip from the wheel rim. See Fig. 5 |
EurolinE® slimline™ wheel cover installation:
1. Remove old wheel cover from wheel rim.
2. Position the new wheel cover on the wheel rim, aligning the value cap.
Make sure all clips fit over the wheel rim edge.
3. Holding the wheel cover firmly in place tap outer edge gently with your hand or a
rubber mallet at clip locations to push the wheel cover onto the wheel rim.
Continue until the wheel cover is seated completely on the rim. PAT NO. M295046
|
To remove the wheel cover, place a tack puller screwdriver (EU6400) or a flathead screwdriver under the retaining clip and pry away from the wheel rim as the arrow suggests on the clip, "in an upwards direction". It is important that you do this on all four/five clips to remove the wheel cover. |
1. Identify your wheel size and determine correct wheel cover size. |
2.
If you have replaced the original factory wheels with aftermarket
wheels your wheel cover size may differ from our application. |
3.
Warning!
Do not pull to remove cover, use a flat screwdriver to unclip
the retainer clips Caution: Use safety glasses for eye protection when installing or removing wheel covers. |
ABS+ ( New Structure & Unbreakable Material ) |
WORLDWIDE PATENTED OUTER RIM CLIP ON RETENTION SYSTEM |
FLEXIBLE, HI-TORQUE ADVANCED POLYMERIC-POLYOLEFIN ENGINEERED MATERIAL |
Metallic Silver or White Polyurethane durable O.E.M. painting system finish |
Withstands High Braking Temperatures, IZOD Impact Strength 45 kg-cm/cm |
Heat Distortion Temperature 210oC Temperature Resistance: -40oC ~ 160oC |
Chrome Finish Covering All Applications |
eco CHROME / Green CHROME (Not Aluminum Sputtered) |
Light Weight, Size Covering 12"~16" |
Mr. Slim™
Autopure® HS code: 8708.99.90.00-2
EXTRA SIZE HUBCAP-WHEEL COVER 12"=13.50", 13"=14.60", 14"=15.60" ,15"=16.60", 16"=17.48" and 17"=18.98" LOOK
9554/9555/9556 | 9563/9564 | 9573N/74N/75N | 9573/9574/9575 |
14"/15"/16" | 13"/14" | 13"/14"/15" | 13"/14"/15" |
9583N/84N/85N |
9583/9584/9585 |
9594/9595 | 9703N/04N/05N/06N |
13"/14"/15" | 13'/14"/15" | 14"/15" | 13"/14"/15"/16" |
9703/04/05/06 |
9713/9714/9715 | 9723/9724/9725 | 9733/9734/9735 |
13"/14"/15"/16" | 13"/14"/15" | 13"/14"/15" | 13"/14"/15" |
9753/9754/9755 | 9763/9764/9765 | 9773/9774/9775 | 9903/9904/9905 |
13"/14"/15" | 13"/14"/15" | 13"/14"/15" | 13"/14"/15" |
9913/9914 | 9933/9934 | 2003/2004 | 2013/2014 |
13"/14" | 13"/14" | 13"/14" | 13"/14" |
XJ CenterCap | License Frame | ||
JAG6500 JAG6501 | 110-120-520 |
EurolinE® Wheel Cover Traditional Wheel Cover Spinner wheel/Hubcap
Steel
Wheel-Replica Spinner
Wheel
Not
rotating hubcap CapAds®
Home Inquiry
-Mail
Us: autopure@ms3.hinet.net
Open publication - Free publishing - More wheel cover
Mexa Co., Ltd.
since 1979Factory :No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan, Taiwan Tel.09-1019-6666
Mexa Co., Ltd.© since Jan. 1996
