TaiwanWhite® Non Metallic Material Heat Sink;
More surface area for heat dissipation.
Lightweight material / Flexible structure design.
Efficient production by injection molding.
Heat deflection temperature: more than 270 °C
Flame Retardant: UL94 V-0
Material:
White color, Insulation UL94 – Vo @ 3.2mm, K=1.3 W/mK

We use thermal conductive engineering plastic to designing plastic heat sink for an excellent heat dissipation. It enables higher productivity attributing to a lower cost product compare to aluminum.
Optimized heat sink structure long product lifetime.
To replace aluminum die cast and extrusion.
Reduction of process waste.
Reduction of energy consumption.
Regrind reclaim rate of up to 30%
Environmental friendly compliance with RoHS REACH
Weight reduction of up to 40%
Integrated flexibility.
Excellent cosmetic aesthetics.
Enhanced processing capabilities.
Excellent Price Performance ratio.
Insulate Specification conform with 5KV breakdown test.
Non-Halogen Flame Retardant Grade, Flammability UL94-V0 UL94-V2
UL approved V0 and V2
Providing technical advice for a workable business solution
Halogenated Flame Retardant Grade REACH & RoHS compliant

COB, Multi Chips on board, is a technology of LED packaging for LED light engine.
Besides greatly reduce thermal resistance for better conductivity, COB LED module can
get good light effect and high light efficacy. Best reading light, good for eye.

COB Ceramic use ceramic board of high thermal conductivity, which makes COB ceramic achieves 18W/m.k conductivity compared with COB aluminium 1-3W/m.k. Besides, Ceramic is insulating to get more safety.

Color Rendering Index (CRI) is a measure of a light source's ability to show object colors "realistically" or "naturally" compared to daylight. Normally, the higher CRI, the lower Lumens.
COB LED standard CRI: Warm 60-65 Cool 70-75 100-130Lm/W
COB LED High CRI: Warm 80-95 Cool 80-100Lm/W

Specification
●LED Chip Is Fixed On Aluminium Layer Of Aluminium Base PCB.
  The Heat From Chip Can Be Spread Out Through  Aluminium Layer Rapidly.
●Low Lighting Decay, Decay Less Than 1% After 2000 Hours
●Equable And Soft Irradiancy , No Flickering Light And Eye Protection.
●Good Reliability, No Dead Bulb And No Facula。
●COB LED Fill Lighting Module Can Be Combined Into Different
   LED Lights Easily。
●Safe, Work Voltage Is Under 50V。
●Environment Friendly。
●Good for Eye, Best Reading Light。

Product Usage
●Round Full Lighting Module Is Widely Used For LED Bulb、LED Cup、
  LED Spot Light、LED Down Light、LED Project Light、
  LED Street Lamp And So On。
●Flat Full Lighting Module Is Widely Used For LED Tube
  (Such As T5/T8/T10)，LED Desk Lamp，LED Bulb，
   LED Hard Bar And So On。

Taiwan White® Long life Bulb

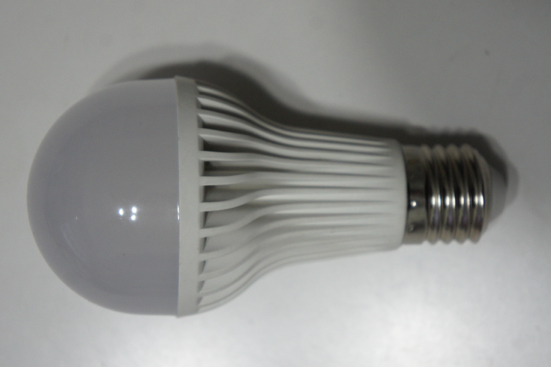

Item：T140210 Taiwan White 10W COB LED Bulb light
Size ：Dia. 61mm L 121mm
Base：E27 / BB27 / E26
Weight：122gm
LED：COB Chips on board
Color Temperature：Warm White(2500—3200K)
                               Cool White   (6000~6500K)
Lumen：950±10% Lm 850±10% Lm
Operation Voltage：110~240VAC (110V/220V 50Hz/60Hz)
Power Factor：>0.9
Power Consumption：10W±10%
Color Rendering Index：CRI：≧70
Illumination Angle：240º
Work Temperature：-20℃~40℃
Life time: 40000H
Housing: Engineering plastic K=1.3W/m-K thermal conductive polymer +PC cover
CE UL94-V0 & RoHS

Item：T140212 Taiwan White 12W COB LED Bulb light
Size ：Dia. 61mm L 121mm
Base：E27 / BB27 / E26
Weight：122gm
LED：COB
Color Temperature：Warm White(2500—3200K)
                               Cool    White(6000~6500K)
Lumen：1425±10% Lm  1275±10% Lm
Operation Voltage：110~240VAC (110V/220V 50Hz/60Hz)
Power Factor：>0.9
Power Consumption：12W±10%
Color Rendering Index： CRI：≧70
Illumination Angle：240º

Work Temperature：-20℃~40℃
Life time: 40000H
Housing: Engineering plastic K=1.3W/m-K thermal conductive polymer +PC cover
CE UL94-V0 & RoHS

Item：T140215 Taiwan White 15W COB LED Bulb light
Size ：Dia. 80.5mm L 146.5mm
Base：E27 / BB27 / E26
Weight：180gm
LED：COB
Color Temperature：Warm White(2500—3200K)
                               Cool White   (6000~6500K)
Lumen：1900±10% Lm  1700±10% Lm
Operation Voltage：110~240VAC (110V/220V 50Hz/60Hz)
Power Factor：>0.9
Power Consumption：15W±10%
Color Rendering Index ：CRI：≧70
Illumination Angle：180º
Work Temperature：-20℃~40℃
Life time: 40000H
Housing: Engineering plastic K=1.3W/m-K thermal conductive polymer +PC cover
CE UL94-V0 & RoHS

Item：T140218 Taiwan White 18W COB LED Bulb light
Size ：Dia. 80.5mm L 146.5mm
Base：E27 / BB27 / E26
Weight：180gm
LED：COB
Color Temperature：Warm White(2500—3200K)
                               Cool White   (6000~6500K)
Lumen：2850±10% Lm  2500±10% Lm
Operation Voltage：110~240VAC (110V/220V 50Hz/60Hz)
Power Factor：>0.9
Power Consumption：18W±10%
Color Rendering Index ： CRI：≧70
Illumination Angle：180º
Work Temperature：-20℃~40℃
Life time: 40000H
Housing: Engineering plastic K=1.3W/m-K thermal conductive polymer +PC cover
CE UL94-V0 & RoHS

Advantage:
1.Longer life
2.High luminous efficiency
3.Pure light color
4.Energy-saving
5.Radiation safe
6.No flickering light
7.Low heat generation
8.Completly replace the incandescent bulb

Notice:
1. Indoor used only. Protect the LED bulb from high temperature and
    heavy humidity.
2. Unsuitable for endorsed fixture and for use on dimmable lighting fixture.
3. Turn OFF the power first while changing the bulb.
