autopure color box wheel cover installation

Installation:

Please note the installation in our web page yellow pictures
http://www.autopure.com.tw/tradi.htm

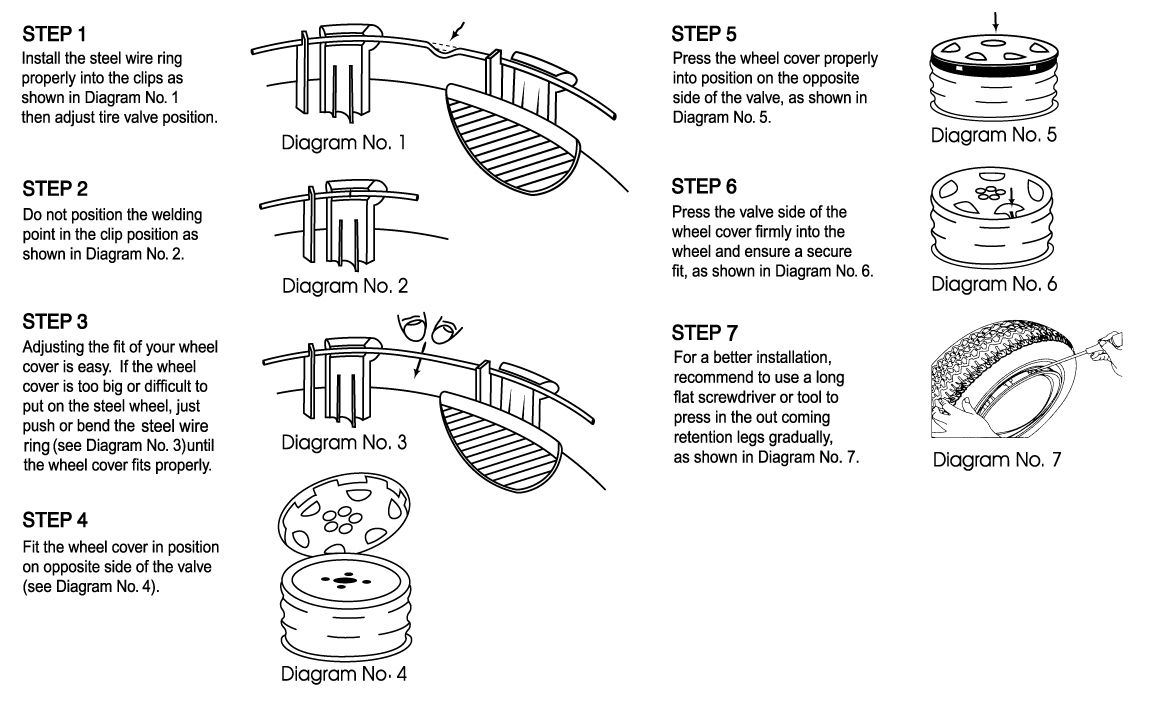

Fit the steel ring into the plastic clips aligning the
kink for the tire valve with that in the wheel cover

    Adjusting steel ring with push/bend the welding points,
    press the wheel cover on to the wheel against to the tire valve
    first then applying pressure gently around the edge

    For a better installation: recommend to use a long flat
    screwdriver or tool to press in the out coming retention legs

    Warning! Don't just squeeze hubcap into wheel, it will cause an
    incorrect installation, will bend and break retention legs

Re-installation

     Re-install Autopure Capads1 on the steel wheel:

     Please recover bended wire ring back to it's original proper circle
     before you re-install Autopure, Capads1 (once it was taken out
     from wheel, you have to recover wire ring proper circle,
     for anew put on wheel.)
