Fire Extinguisher 滅火器海龍滅火器全氟己酮 FK-5-1-12 全氟-2-甲基-3-戊酮 756-13-8 C6F12O 3M Novec1230 全氟己酮滅火器滅火筒

滅火器
Fire Extinguisher
FK-5-1-12 Novec 1230
AKA Halon

Fire Extinguisher MRI
Non-magnetic clean gas fire extinguisher

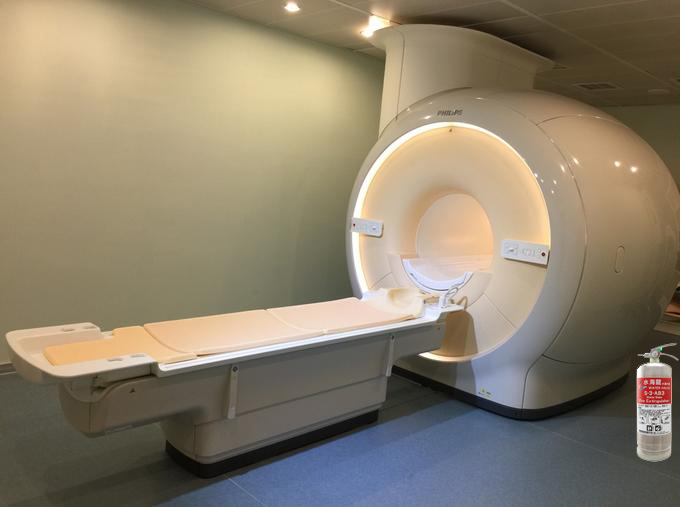

Nuclear magnetic resonance MRI fire extinguisher

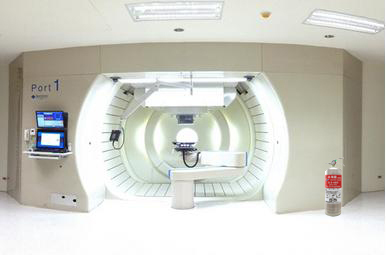

Proton Therapy PT fire extinguisher

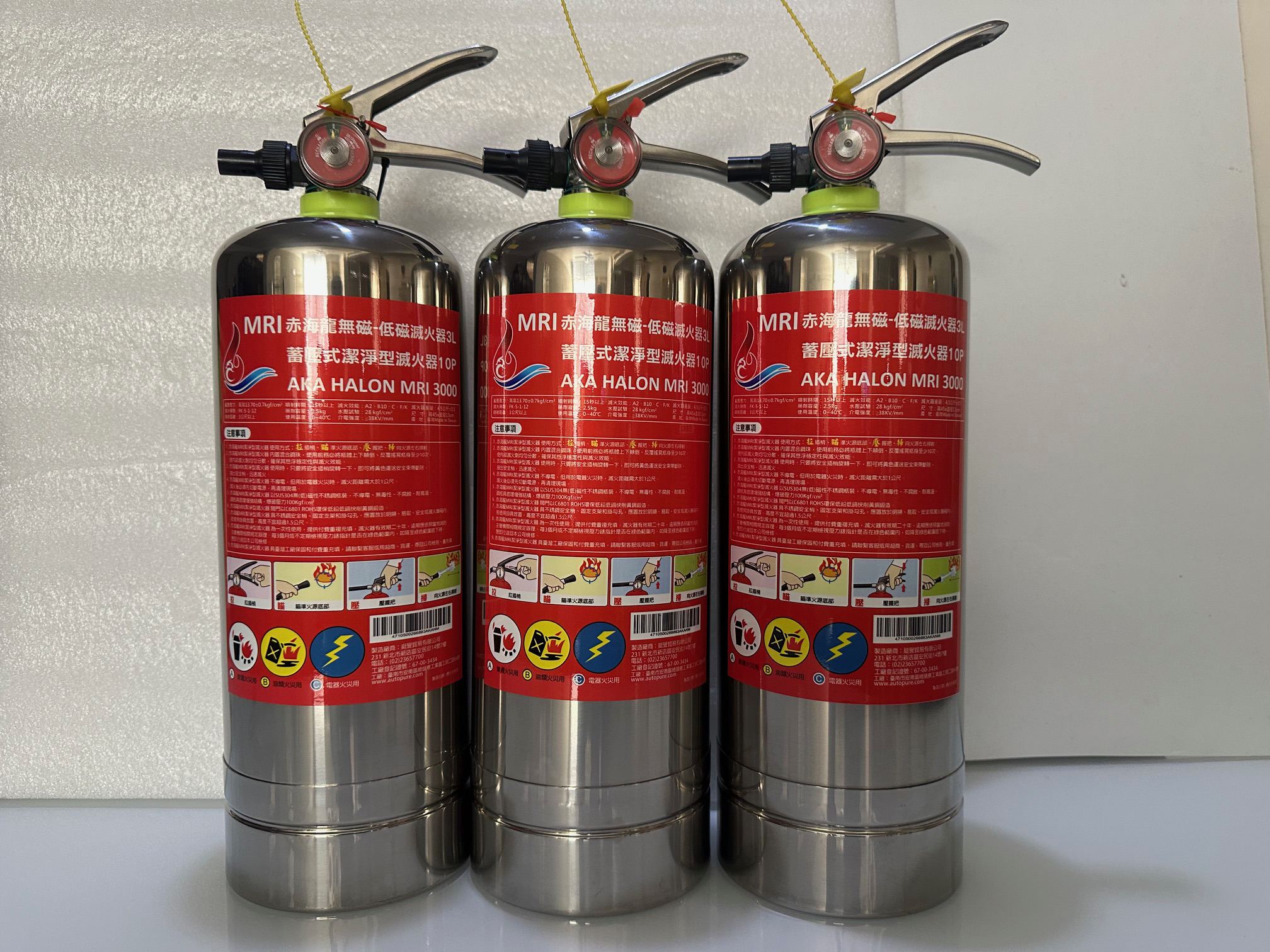

The main feature of AKA Halon non-magnetic fire extinguisher is non-magnetic,
The container material is made of non-magnetic stainless steel.
The use of fire extinguishing agent FK-5-1-12 is
an important substitute for halon fire extinguishing agent.
It is colorless, odorless, low-toxic, non-conductive, does not pollute the protected objects and
will not cause damage to property and precision facilities, nor
It will cause human and livestock hazards during use.
It can reliably extinguish Class A, B, C fires and Class E electrical fires
with a low extinguishing concentration, and it does not contain particles or oily residues after release.
No damage to the atmospheric ozone layer, ODP is 0
The global greenhouse effect potential GWP is 1
The retention time in the atmosphere is 5 days
which meets environmental protection requirements. AKA Halon Chihailong non-magnetic
fire extinguisher is specially designed for MRI... and other strong magnetic field environments.
The clean gas fire extinguishers developed have been widely used in large hospitals and
scientific research institutions at home and abroad.

FK-5-1-12 Physical Properties：

Property	Unit Value
Molecular Mass	316.4
Boiling Point at1013bar	49.2℃
Freezing Point	-108 ℃
Liquid Density 25℃	1.6g/ml
Liquid Viscosity	0.524 cp
Critical Temperature	168.66℃
Critical Pressure	18.66 bar
Critical Density	639.1kg/m³
Heat Of Vaporization At Boiling Point	88 kj/kg
Solubility Of Water in FK-5-1-12 25℃	<0.001 wt%
Vapour Pressure 25℃	0.40（5.87）bar(psia)
Dielectric Strength	~ 110KV/mm

FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product：

Item	FK-5-1-12	HFC-227ea	HFC-236fa	Halon1211	Halon1301
ODP	0	0	0	4	10
GWP	1	3800	9400	11300	6900
ALT	0.014	36.5	226	11	65
ODP: Ozone Depletion Potential GWP: Global Warming Potential ALT:Atmospheric Life Time (per Year)

Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is much lower than NOAEL value,
and has extremely low toxicity and thus high safety.
The extinguishing agent is registered in USE.P.A.T.S.C.A.

FK-5-1-12 Concentrations and Safety Margins Comparison：

Item	FK-5-1-12	HFC-227ea	CO2	Halon1301
Boiling Point ℃	49.2	-16.4	-78.4	-57.8
Use Concentration	4-6%	7.5-8.7%	30-75%	5%
NOAEL	10%	9%	＜5%	5%
Safety Margine	72-122%	5.9-20%	Lethal	0
NOAEL： Invisible Harm Concentration

Safety Margins= FK-5-1-12 -Use Concentration / Use Concentration X 100%
