Fire Extinguisher
For Aviation Aircraft Civil Aircraft Private Plane
Pilot Driver Captain

AKA Halon FK-5-1-12_Novec1230
Fire Extinguisher Manufacturer
Stainless Steel 304L Bottled

Reflex 1230 Reflex 2 ReflexOFeu brand new unit Novec 1230 (Pressurized) 2Kg

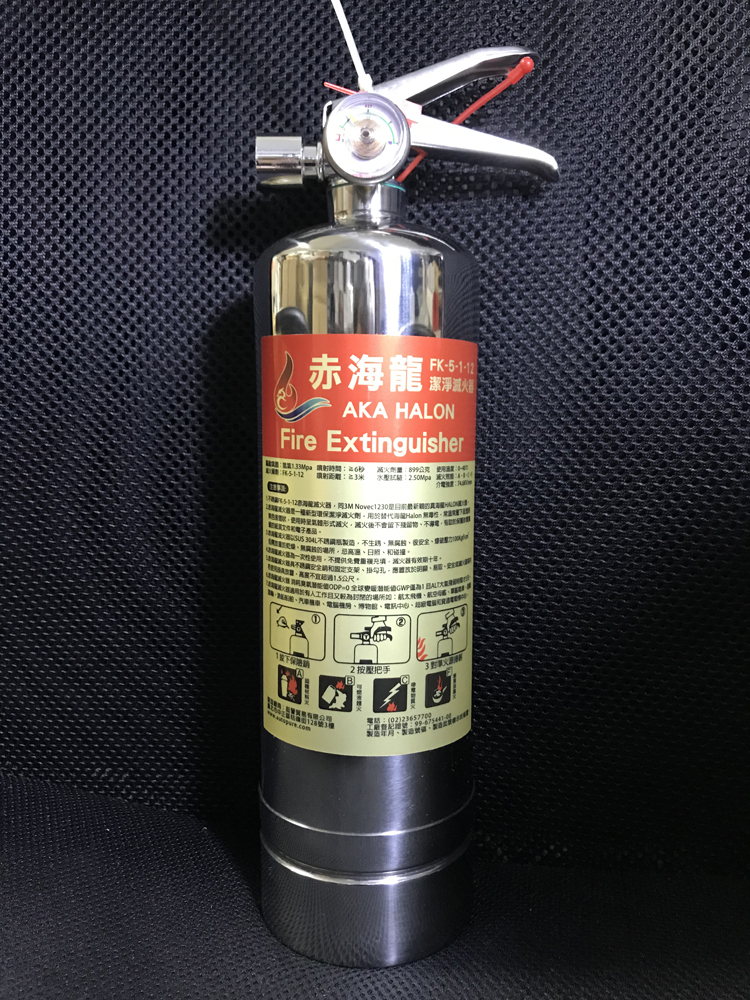

The AKA HALON automatic fire extinguisher AKA HALON2 is
pre-installed with a red plastic fire detection tube.
When a fire breaks out in the installation pipeline area, the pipeline there will
automatically spray out HALON gas to extinguish the fire immediately when it ruptures due to high temperature.

The AKA HALON2 red plastic fire detection tube is pre-arranged to automatically extinguish the fire within 3 seconds.
AKA HALON2 is a transparent colorless liquid at room temperature and pressure.
When the temperature is higher than 49℃, it will be in gas form and follow the
temperature of the fire source to extinguish the fire.
It will not leave any residue after extinguishing the fire, is non-conductive and can
continue the original work... ancient books, famous paintings and paper documents
There is no damage when immersed in AKA HALON fire extinguishing agent, helping to
 protect valuable paper documents and electronic products.

5P 2000ml is the dosage required for large trucks in road traffic regulations and is
suitable for general vehicle fire extinguishing.

AKA HALON2 does not damage electronic equipment, is non-corrosive,
non-conductive, clean and leaves no residue.
There is no residue after use, no need for foam or dry powder fire extinguishing agents, and t
he tragic situation after use can be quickly resume work and continue to
perform current affairs, that is, after the AKA HALON extinguishes the fire, if the car can still start,
you can drive away from the scene and quickly go to the garage.

AKA HALON2 is harmless to humans and animals.
It is liquid under normal temperature and pressure and will not burn or explosion, very suitable for
fire prevention and fire extinguishing in narrow spaces.
Suitable for computer rooms, communication rooms, transportation vehicles, engines, ships, cruise ships,
aerospace, airplanes, supercars, cars, school buses, buses, tour buses, trucks, museums, archives,
paint room, archive room, relay room, distribution room, electrical cabinet, power supply control room,
engine turbine room and electrical discharge machine tools...etc.

AKA HALON FK-5-1-12 is a new type of environmentally friendly,
efficient and clean fire extinguishing agent that does not damage the ozone layer.
It is used to replace Halon [1994 International Convention stipulates zero production and z
ero consumption of Halon fire extinguishing agent].
Ozone depletion potential (ODP) is 0
Global warming potential GWP is 1
Atmospheric residual time ALT is 5 days (0.014 years)

Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 2L
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
High pressure hose: 6mm x15 meters
Pressure switch: Euroswitch (1-10Bar optional)
Dimensions: 15.36” x 4.33” (bottle height 39cm x width 11cm x bottle diameter 11cm)
|Total weight: 2.70-2.95kg
Injection time:
20 seconds
Spray distance:
3 meters
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength:
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the s.s. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone: (02)23657700

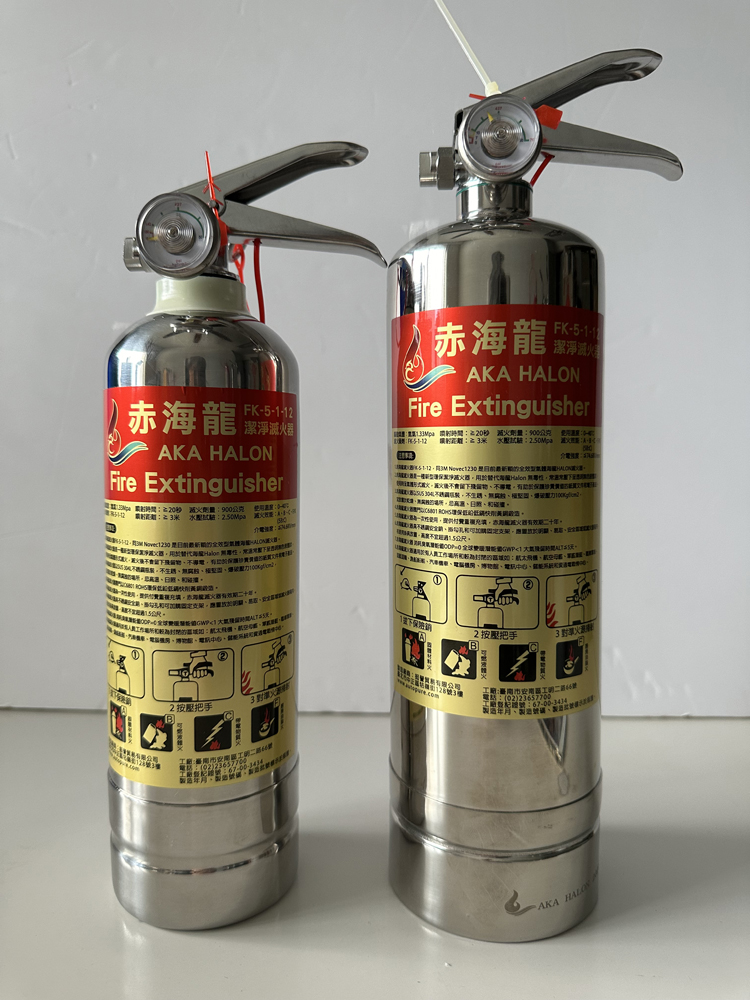

Aka Halon 1P (700ml) US$99/pc EXW Taiwan
FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 1.10Kgs.
Size  11.7” x 3.0” (H 29.80cm x Diameter 7.60cm)
Capacity1.54 lbs. (0.50-0.70Kgs.)
Weight3.31 lbs. (1.30-1.50Kgs.)
AKA pilot
Aka Halon 3P (980gm) US$199/pc EXW Taiwan
FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 1.65Kgs
Size  13.3” x 3.4” (H 33.80cm x Diameter 8.60cm)
Capacity1.88 lbs. (0.85-1.00Kgs.)
Weight3.36 lbs. (1.65-1.90Kgs.)
Extinguisher Agent Pressure Fire Class Capacity Barrel Weight Discharge Time Range Max. Item #
FK-5-1-12 2.8Mpa ABCDF 700ml 304L S.S. 0.85-1.00 Kgs 10 to 15 sec >3M AKA700
FK-5-1-12 2.8Mpa ABCDF 980ml 304L S.S. 0.90-1.10 Kgs 15 to 25 sec >3M AKA980
Fire extinguishers AKA Halon (FK-5-1-12_Novec1230) for general aviation aircraft.
Flying with a good fire extinguisher is essential, but one thing is for sure:
regular household extinguishers are not suitable for aviation use.
A water or carbon dioxide agent can damage your avionics, corrode the airframe,
or create unsafe conditions in the cockpit.
For that reason, we recommend very specific types of fire extinguishers for
general aviation pilots—halon or AKA Halon (FK-5-1-12_Novec1230).

AKA980 13.3”x3.4” Capacity 1.88 lbs. Total Weight 3.63 lbs.
AKA Halon fire extinguishers are perfect for the cockpit.
AKA Halon leaves no residue, doesn't corrode expensive avionics or
other aircraft parts, doesn't impair vision and doesn't freeze surfaces.

AKA Halon (FK-5-1-12) clean extinguishing agent has good environmental harmony,
It's Ozone Depletion Potential (ODP) is 0
Global Warming Potential (GWP) <1.0
the Atmospheric life Time (ALT) is 0.014 year

Fire Extinguisher aircraft pilot
Driving Gas
Extinguisher AgentFK-5-1-12
Discharge Times15sec.
Range 5M
Fire ClassABCDEF(K)
Breakdown Voltage40KV/mm
Validity Period : 20 years

Porsche Fire Extinguisher Halon
AKA Halon (FK-5-1-12_Novec1230) is no corrosive, has good insulating property, never damages electronic equipment,
precision instruments, paper documents, cultural relics and antiques, generates no residue after use,
and may substitute for sprinkler system, dry chemical and foam extinguishing system to protect the high-valued assets.
AKA Halon (FK-5-1-12_Novec1230) extinguishing agent has excellent extinguishing characteristics,
it can put out Type A, B and C fire, is non-conductive and after ejection, it fast evaporates without any residue.
Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire,
which mostly approaches that of halon extinguishing agent.
Results of toxicity test of AKA Halon (FK-5-1-12)

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50100000ppm)


No carcinogenicity

Acute oral

Low (LD505000mg/kg)

Acute dermal

Low (LD502000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration


From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency,
meets the requirements on use safety, is almost harmless to human body,
is much suitable for extinguishing and protection of the person-residing place.
