滅火器
FIRE EXTINGUISHER AKA HALON
Super Car Halon Gas Automatic Air Extinguisher
No
Need To Replace Security Check Valid
For 20 Years


FK-5-1-12 Novec1230 AKA Halon
Auto
matic Put Out Fire Extinguishing System
700ml 1L
3 L and 6 L
AKA HALON2
Reflex 1230 Reflex 2 ReflexOFeu brand new unit Novec 1230 (Pressurized) 2Kg

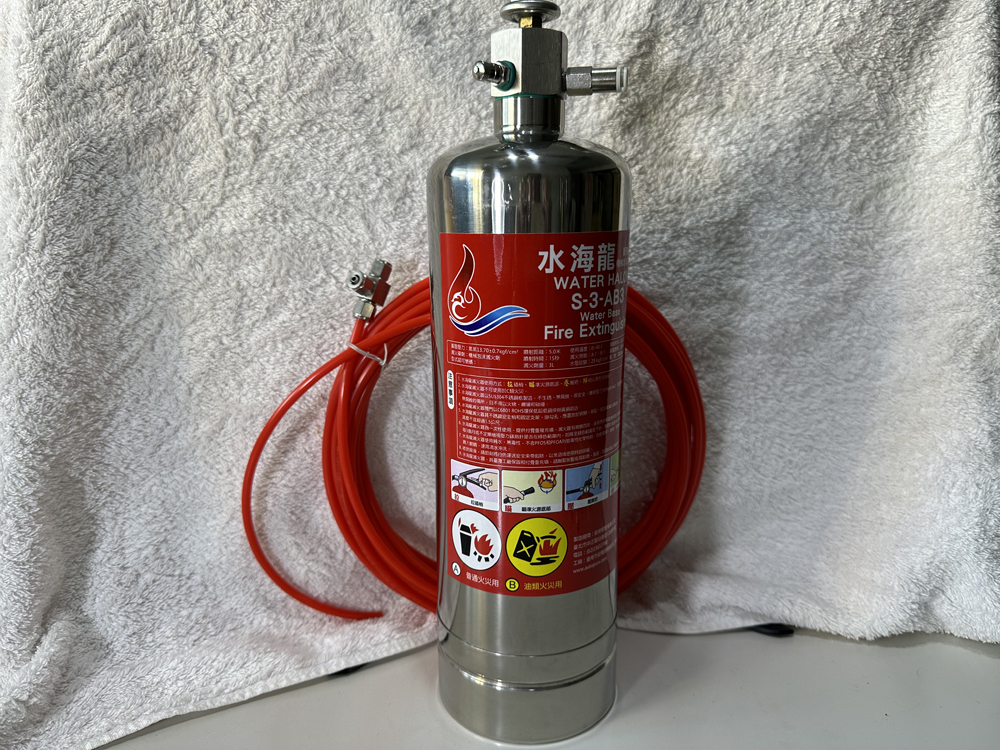

0591

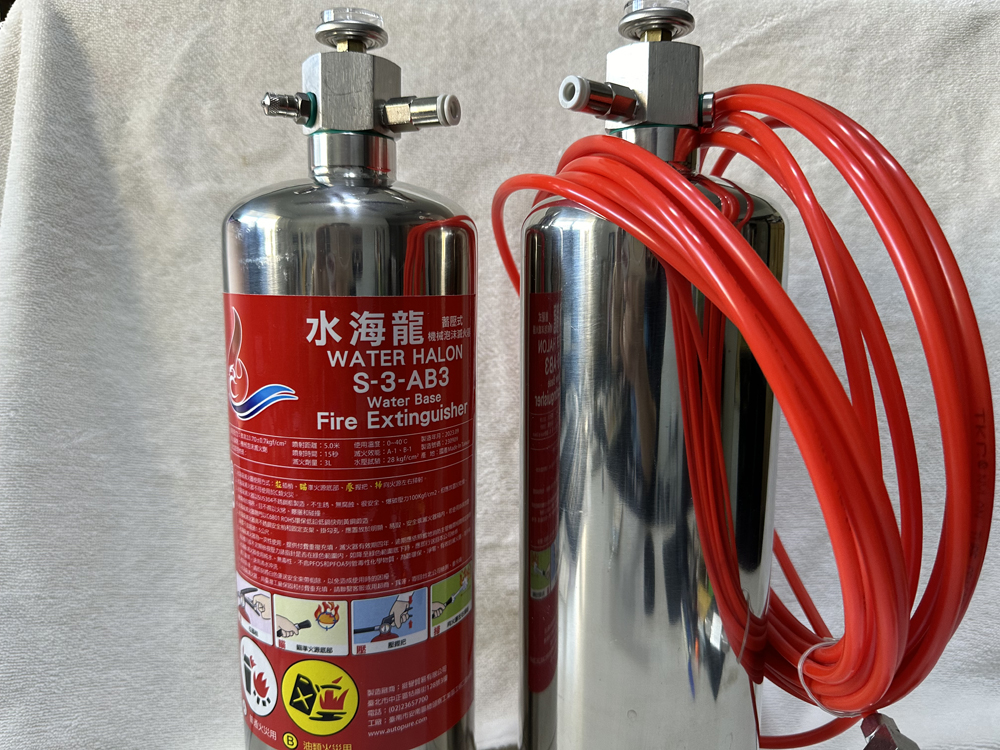

0615
AKA HALON1 – AKA HALON12301
Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 1L - 3P - 2m
³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
Dimensions: Dia. 86mm x H 330mm x W 86mm
Red tube high pressure hose: 6mm 25 meters
90Fast Connector*2_180Fast Connector*4_End Connector*1
Dimensions: 13” x 3.39” (bottle height 33cm x width 8.60cm x diameter 8.60cm)
Total weight: 1.65-1.90kg
Injection time:
20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength:
40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700


AKA HALON2 – AKA HALON1230
Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 2L - 5P - 2m
³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
Dimensions: Dia. 110mm x H 390mm x W 110mm
Red tube high pressure hose: 6mm 25 meters
90Fast Connector*2_180Fast Connector*4_End Connector*1
Dimensions: 15.36” x 4.33” (bottle height 39cm x width 11cm x 11cm)
Total weight: 2.90-3.2kg
Injection time:
20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength:
40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700


AKA HALON3 – AKA HALON1230
Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 3L - 10P - 3m
³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
Dimensions: Dia. 130mm x H 440mm x W 130mm
Red tube high pressure hose: 6mm 25 meters
90Fast Connector*2_180Fast Connector*4_End Connector*1
Dimensions: 17.32” x 5.12” (bottle height 3cm x width 13cm x bottle 13cm)
Total weight: 4.70-5.0kg
Injection time:
20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength:
40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700

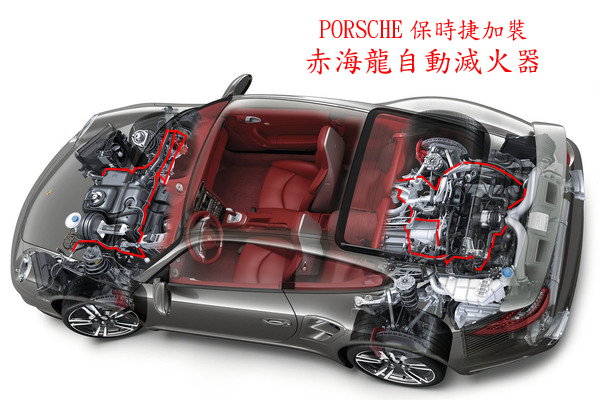

赤海龍自動滅火器 AKA HALON2預先安置紅色塑膠探火管,
當在安裝管路區起火時,該處的管路遇高溫破裂瞬間自動噴出海龍氣體滅火


預先排設赤海龍
AKA HALON2紅色塑膠探火管、火災時3秒自動滅火。

赤海龍
AKA HALON2常溫常壓下呈透明無色液體狀,使用時在環境溫度
高於>49℃即呈氣體形式,依循火源溫度追逐滅火。
滅火後不會留下殘留物、不導電、可繼續原工作...古書、名畫紙本文件
浸沒入赤海龍滅火劑無浸損,有助於保護珍貴價值的紙質文件和電子産品。

5P 2000ml道路交通規定大卡車的配備劑量,一般車輛滅火皆適用。
赤海龍AKA HALON2不損害電子器材、無腐蝕、不導電、潔淨無殘留的特點
在使用後無殘留免除泡沫或乾粉滅火劑,使用過後的慘狀,又能夠迅速
恢復工作和繼續執行現況事務,也就是當赤海龍滅火後,若車子仍能發動,
即可駛離現場速往修車廠。

赤海龍AKA HALON2對人畜、動物無害,常溫常壓常態下呈液體狀,不會燃燒
爆炸,非常適合於狹隘空間防火、滅火。

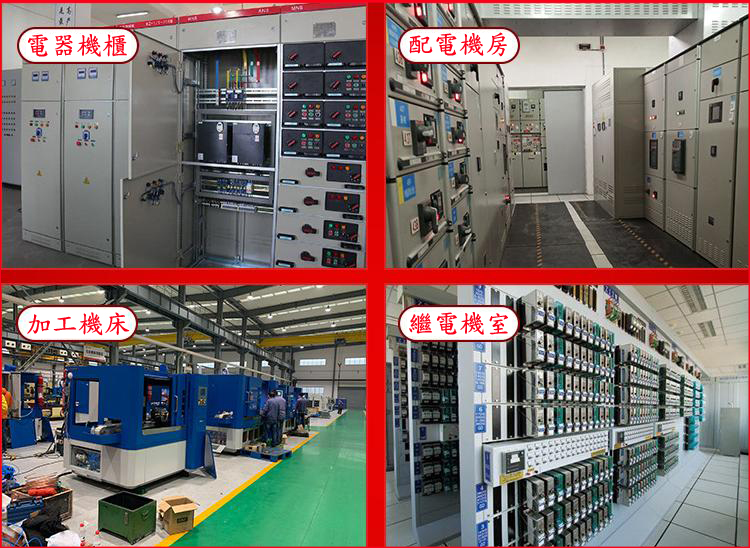

適用於電腦機房、通訊機房、運輸車輛、引擎發動機、船舶、遊輪、艦艇、
航太、飛機、超跑、汽車、校車、巴士、遊覽車、卡車、博物館、檔案室、
油漆間、檔案室繼電機室、配電機房、電器機櫃、
電源控制室、發動機輪機室和放電加工機床等。

赤海龍FK-5-1-12是一種新型環保高效潔淨滅火劑,不破壞臭氧層,
用於替代[1994年國際公約規定海龍滅火劑零生產零消費]的海龍Halon
消耗臭氧潛能值ODP0
全球變暖潛能值GWP1
大氣殘留時間ALT5 (0.014)

   牌:赤海龍AKA HALON2
   號:5P FK-5-1-12
份:C6F12O
量:2L
型式種類:FK-A51120潔淨滅火器
蓄壓壓力:氮氣13.70±0.7kgf/cm²
高壓軟管:6mm x15公尺
壓力開關:Euroswitch (1-10Bar選配)
    寸:15.36”x 4.33”(瓶高39cm x 11cm x瓶直徑11cm)
    重:2.70-2.95公斤
噴射時間:20
噴射距離:3
水壓試驗:28 kgf/cm²
使用溫度:
0~40
介電強度:40kV/mm
滅火效能:ABCDF K
有效期限:20
生產日期:標示於瓶底
生產廠商名稱:挺譽貿易有限公司
工廠登記證號:67-00-3434
   話:(02)23657700
Made In Taiwan

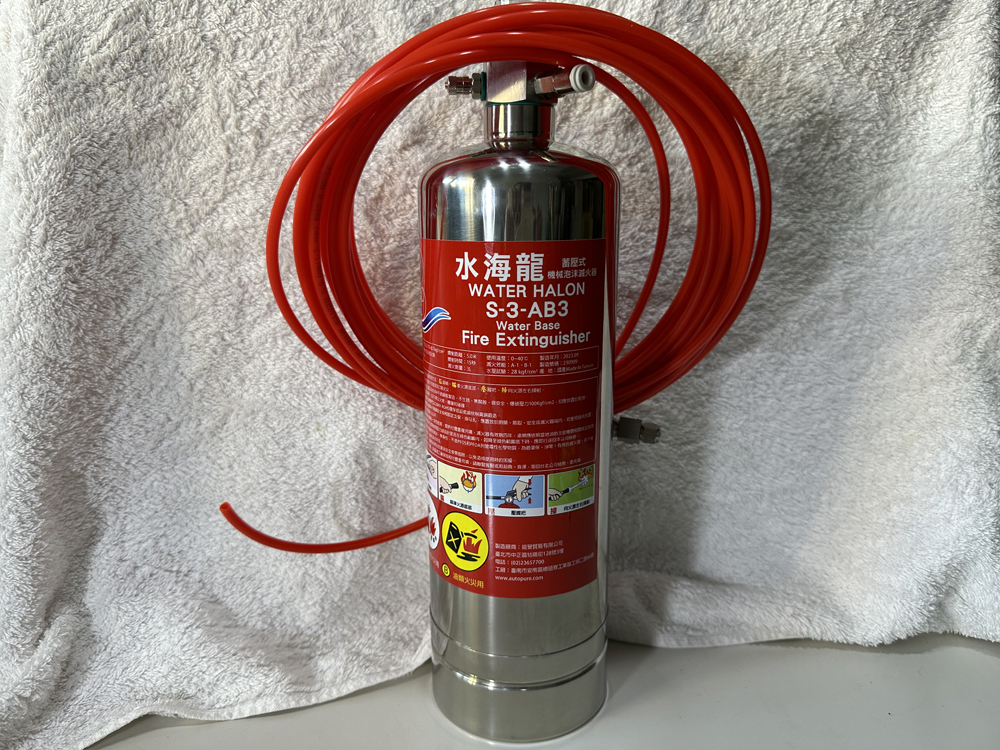

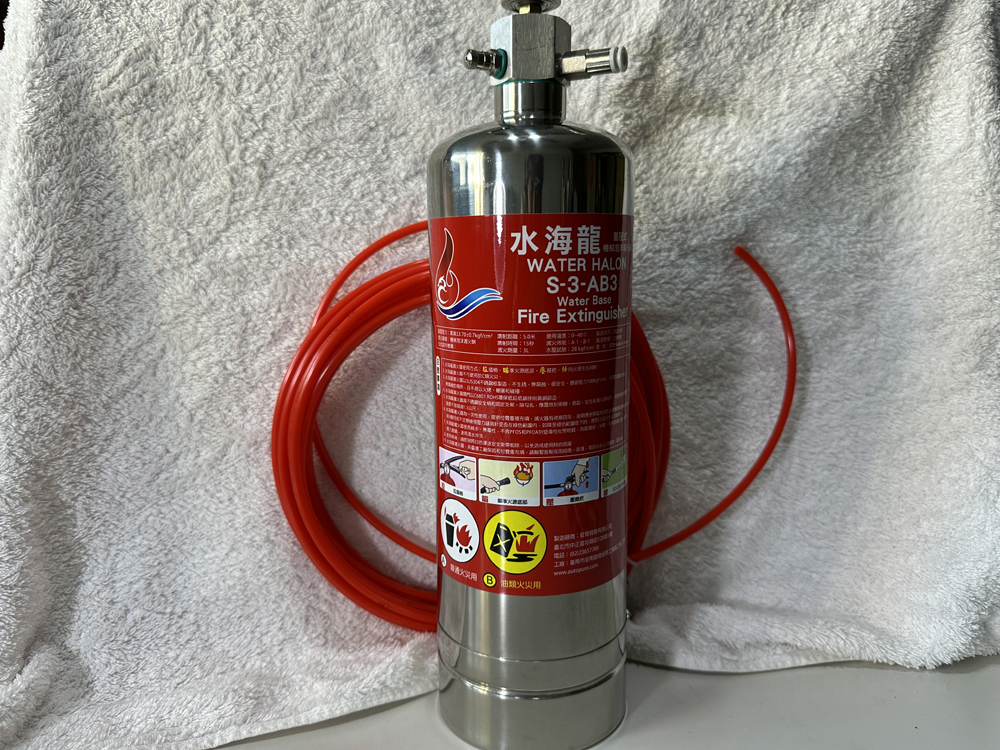

拍場照片僅供參考,因赤海龍AKA HALON2貼紙趕印不及,暫以水海龍貼紙拍攝,
實際圖案以當期產製出貨產品為準。
Auto Fire Extinguisher – AKA Halon
The car burned, the fire extinguisher was not available on the car, and
the firetruck failed to arrive in time. Seeing that the car burned out.

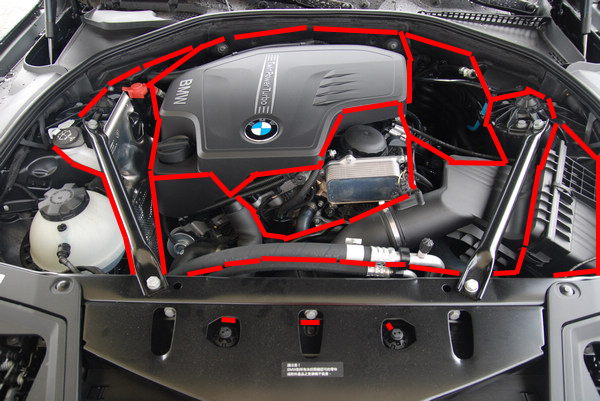

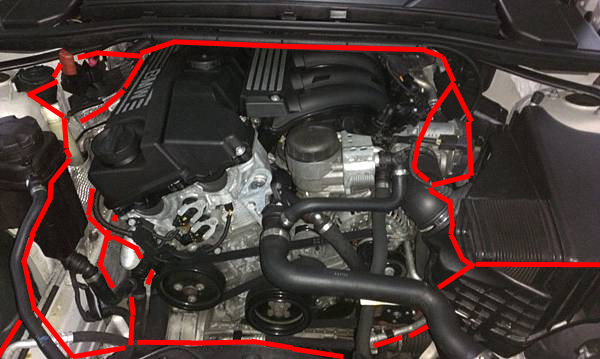

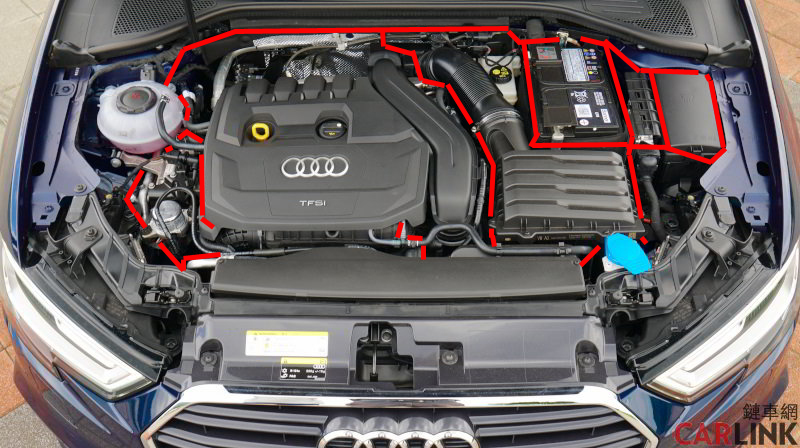

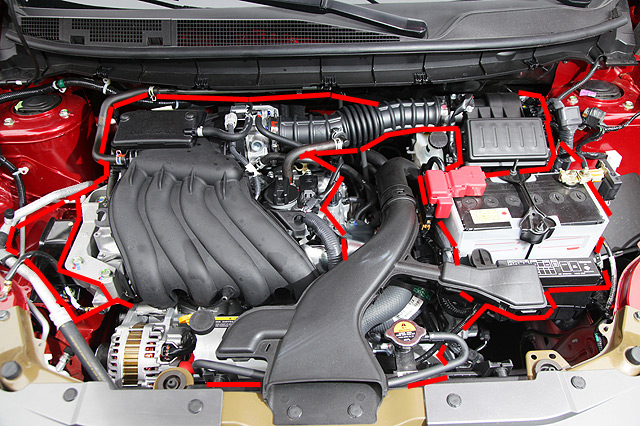

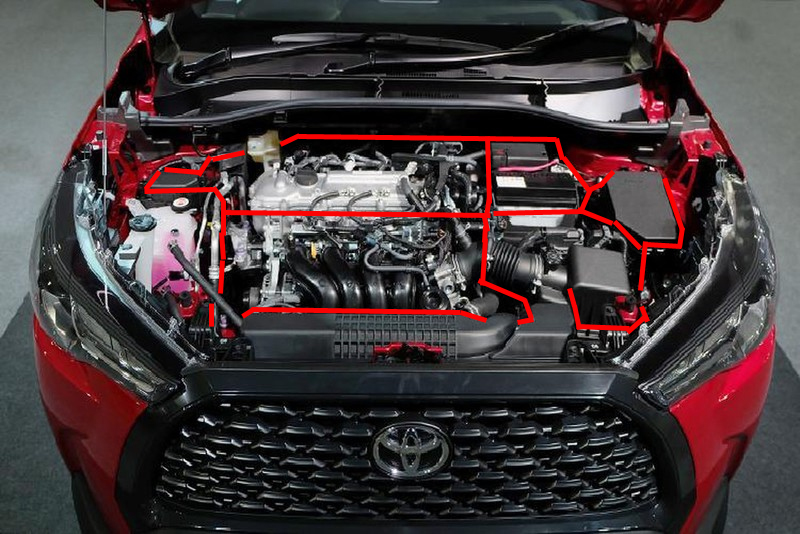

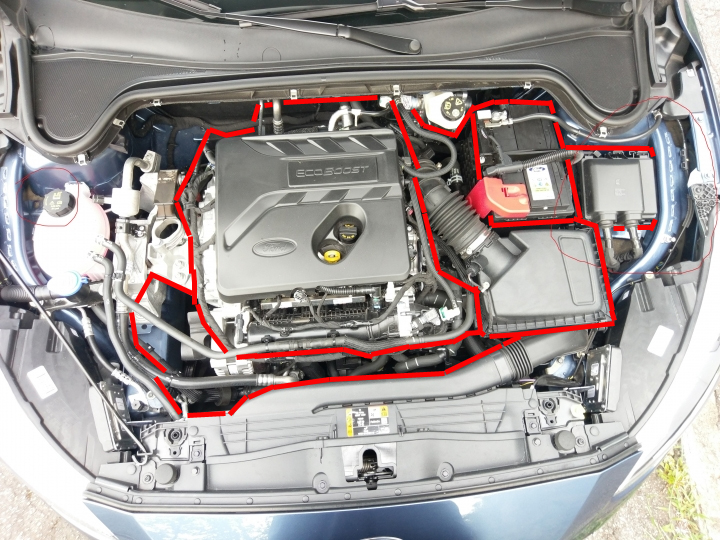

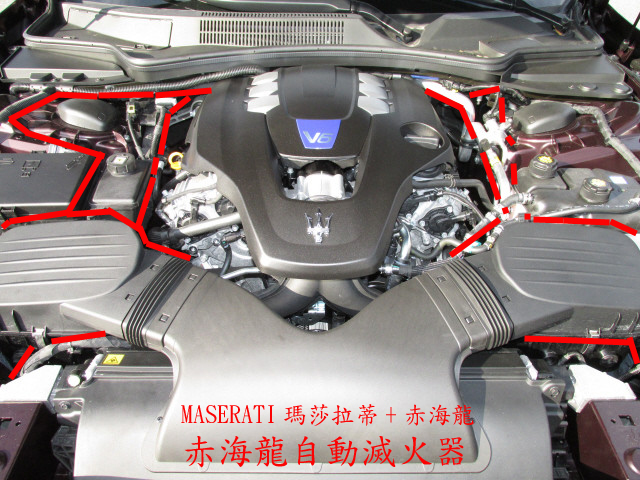

The "Red Sea Dragon" automatic fire extinguishing system is installed on
the car in advance.
When a fire occurs between the pipes of the fire extinguishing system,

Due to the increase in the temperature of the fire point, the pipeline at
thatlocation ruptured in high temperature, and H
alon gas fire extinguishing
agent was sprayed out to extinguish the fire.

AKA Halon FK-5-1-12 is a new type of environmentally friendly, efficient and
clean
,
fire extinguishing agent, used to replace Halon, AKA Halon FK-5-1-12
does not damage electronic equipment, is non-corrosive, non-conductive,
clean and has no
residue.
After use, there will be no foam or powder fire extinguishing agent, and
the miserable state after use can quickly resume work and
continue to
implement current affairs, that is, if the car can still start driving after
AKA Halon
puts out the fire, you can leave the scene and go to the garage.

ODP is 0
GWP is 1


ALT (0.014 years)
Atmospheric Lastance Time retention time is 5 days



Harmless to humans, animals and animals
And it is liquid under normal
temperature and pressure, which will not burn or explode, and it is very
convenient for transportation and storage.

AKA Halon FK-5-1-12 can be used in computer rooms, communication
rooms, engines, ships, cruise ships, ships, aerospace, aircraft,
supercars, automobiles, school buses, buses, tour buses, trucks,
transportation vehicles, museums
,
file room,paint room,
AC power control room, engine turbine room and pump room...etc.

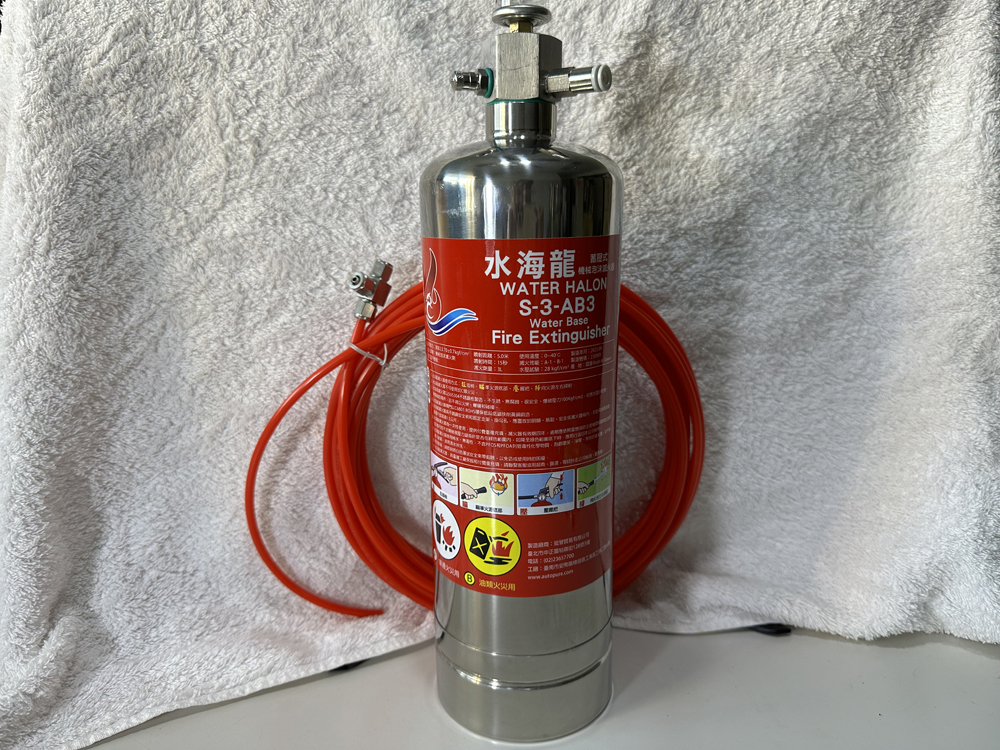

0589  0588

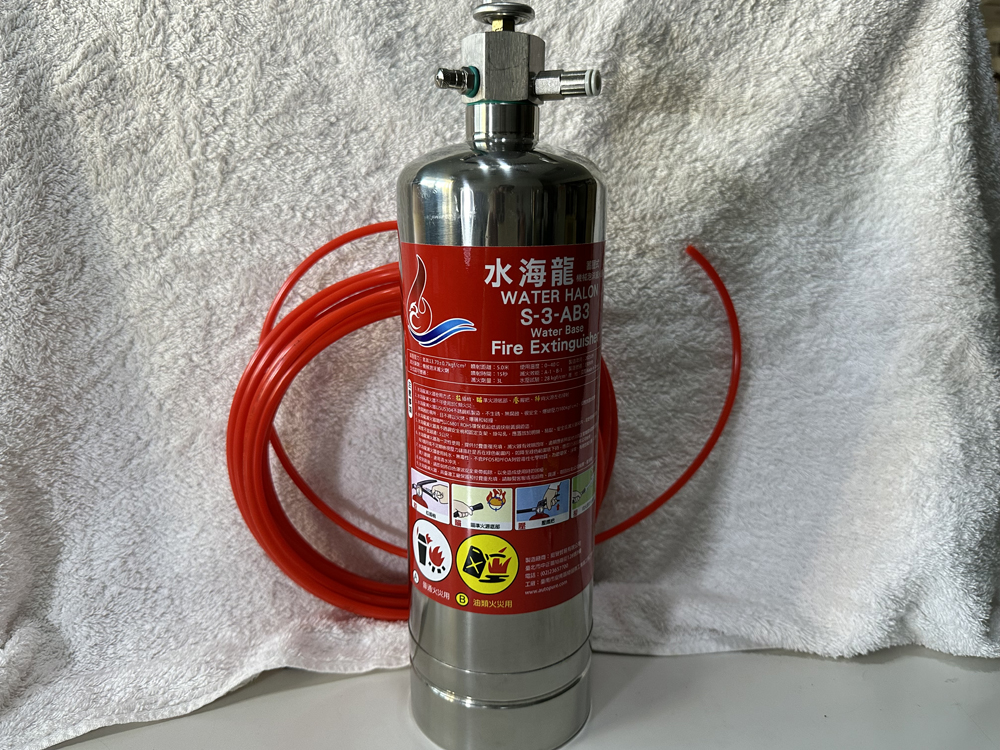

0596  0598
0608 0616
0440

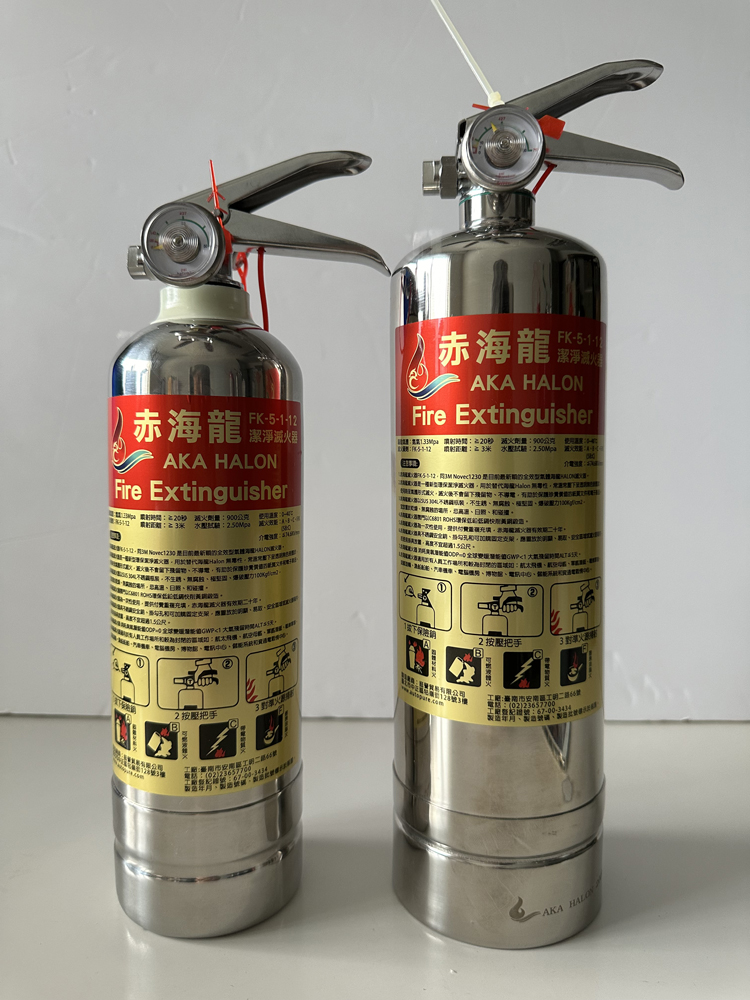

Aka Halon 1P (700ml) US$99/pc EXW Taiwan

FK-5-1-12 AKA1230
Refillable 304L Stainless Steel Bottled
Size 11.7”x3.0” (H29.80cm x Diameter 7.60cm)
Capacity 1.54 lbs. (0.50-0.70Kgs.)
Weight 3.31 lbs. (1.30-1.50Kgs.)
Agent weight
     1.22 lb. / 0.55 kg
Gross weight
      2.87 lb. / 1.30 kg
Discharge range
   10 ft. / 3 m
Discharge time
    10 sec.
Height
           9.84 in. / 30 cm
Width
           2.5 in. / 7.6 cm
Cylinder diameter
  2.5 in. / 7.6 cm
UL Classification
   5B:C
Extinguish area
     2m
³

Aka Halon 3P (980gm) US$199/pc EXW Taiwan
FK-5-1-12 AKA1230
Refillable 304L Stainless Steel Bottled
Size 13.3”x3.4” (H 33.80cm x Diameter 8.60cm)
Capacity 1.88 lbs. (0.85-1.00Kgs.)
Weight 3.36 lbs. (1.65-1.90Kgs.)
Agent weight
    1.76 lb. / 0.80 kg
Gross weight
     4.19 lb. / 1.90 kg
Discharge range
 10-16 ft. / 3- 5 m
Discharge time
  10-15 sec.
Height
         13.19 in. / 33.5 cm
Width
          3.4 in. / 8.6 cm
Cylinder diameter
 3.4 in. / 8.6 cm
UL Classification
   5B:C
Extinguish area
    3m³

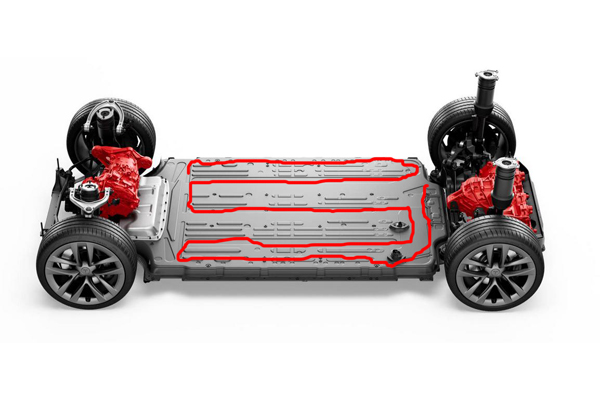

Tesla S

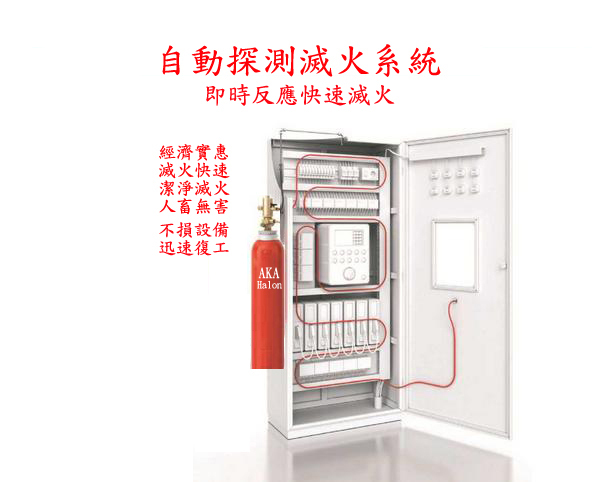

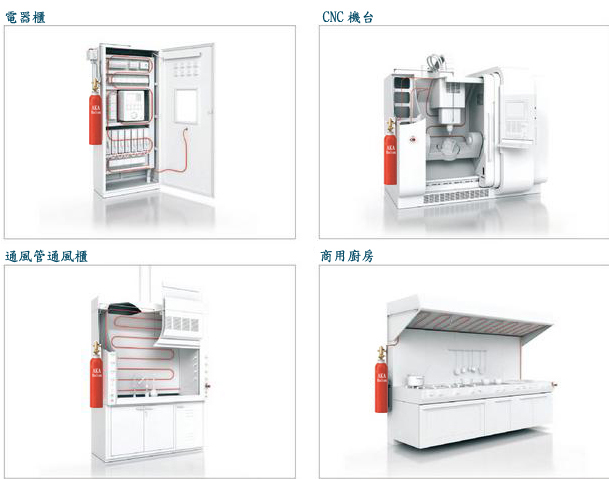

AKA Halon fire detection tube temperature-sensing automatic fire extinguishing device is a simple, reliable, and timely independent fire detection and fire extinguishing device developed in Taiwan in recent years, referred to as "fire detection tube fire extinguishing device". This type of fire extinguishing device
uses a flexible and bendable fire detection tube as a fire detection and alarm component, and at the same time, this fire detection tube can also be used as a pipeline for the delivery and discharge of the fire extinguishing agent.

The fire detection tube can be conveniently arranged near every potential fire source.
Once a fire occurs, the fire detection tube is heated and ruptured, and the fire extinguishing agent is immediately released to extinguish the fire.
It can make up
for the deficiencies of existing fixed gas automatic fire extinguishing devices,
and is used for fire protection in places where metal pipe networks, nozzles or
fire alarm systems cannot be installed, especially in small spaces and special environments.

Composition and principle:

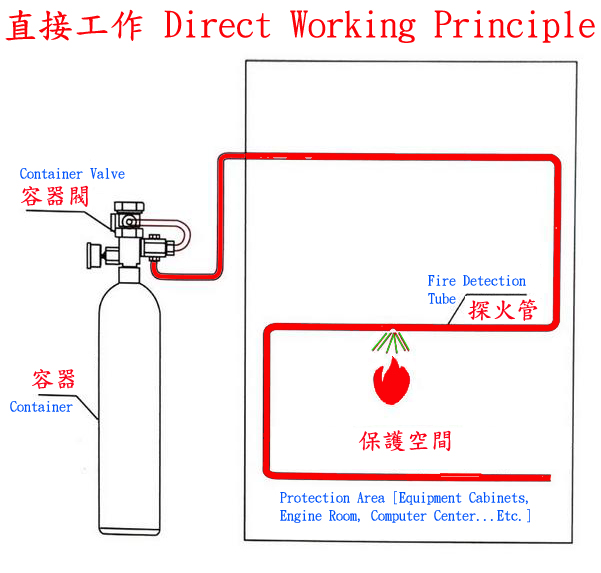

1. Direct fire detection tube fire extinguishing device
It is mainly composed
of fire extinguishing agent storage containers, container valves, fire detection pipes, pressure gauges, one-way valves,
It is composed of pressure switch, alarm bell (optional accessory) and special joint for fire detection pipe.
The direct type is the fire detection tube in the fire detection system, which is used as a fire detection component and as a delivery component of the extinguishing agent. That is to say, once the fire detection tube detects a fire, it will directly release the extinguishing agent to extinguish the fire.
Direct fire detection tube fire extinguishing device, mainly used for equipment with a certain enclosure, Such as communication cabinets, power distribution boxes, computer rooms, etc. for fire fighting.

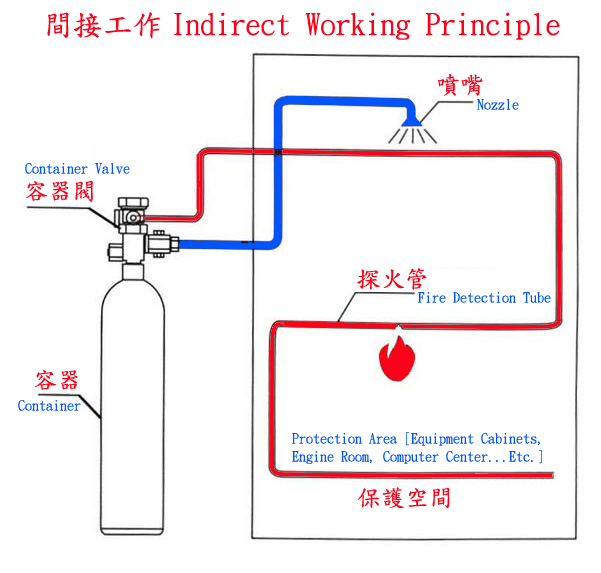

2. Indirect fire detection tube fire extinguishing device Mainly consists of fire extinguishing agent storage container, container valve, fire detection tube, release tube, nozzle, Pressure gauge, one-way valve, pressure switch, alarm bell (optional accessory) and It is composed of special joints for fire detection pipes. The indirect type is the fire detection tube in the fire extinguishing system, which is only used as a fire detection component. When the fire detection tube detects a fire, it will activate the container valve on the fire extinguishing agent storage container, The fire extinguishing agent is delivered by a special fire extinguishing agent release pipe to extinguish the fire. The indirect fire detection tube fire extinguishing device is mainly used to perform local The fire extinguishing method can also be used to extinguish the fire by flooding the entire room.

Device features: As a simple, low-cost and reliable independent automatic fire extinguishing system, It does not need any power supply, no special smoke and temperature detection fire detectors, no complicated electronic equipment and pipelines, and uses its own pressure storage, relying on a charged fire detection tube and a set of fire detection bottle sets to quickly , Accurately and effectively detect and extinguish the fire source, integrate the alarm and extinguishment, and extinguish the fire in the initial stage. It can greatly reduce the cost of fire extinguishing equipment, reduce the amount of fire extinguishing agent, reduce the cost of each fire extinguishing, and reduce the damage to personnel. By adopting this device, the original protection of a larger enclosed space can be changed to directly protect various valuable equipment in a smaller enclosed space. Achieve close-range, point-to-point (fire extinguishing agent spray point and fire point) rapid fire extinguishing.

Applicable places:
1. The microwave computer room, electronic computer room, transformer and distribution room in the radio and television transmission tower and
Uninterruptible power supply room
.
2. Program control exchange room, control room and signaling transfer point room of communication system
.

3. The control room, electronic equipment room, computer room, relay room, cabin of the power plant,
Engine room, engine room, ammunition compartment, ship, tank, train, bus, truck, Tour buses, other transportation vehicles carrying passengers, personnel, and passengers; Substation and distribution room; cable crossing, dense and intermediate joints, etc.
4. Substation and distribution cabinets, elevator control cabinets, wire and cable troughs or bridges with trough boxes
.
5. Assembling room with staff, other special places and airtight enclosure or Important cabinet equipm
ent.



AKA Halon FK-5-1-12 is harmless to humans, animals and things

AKA Halon FK-5-1-12 has low toxicity and high fire extinguishing efficiency.
Compared with CO2 and other clean fire extinguishing agents,
AKA Halon
FK-5-1-12  has an
effective fire extinguishing concentration of 4.5-5.8% or even more than Hailong Halon.

The safety margin is 72-120%.

These features make
AKA Halon FK-5-1-12 can be used in computer rooms, communication rooms,
engine engines, ships, cruise ships, ships, aerospace, aircraft, automobiles, school buses, trucks,
transportation vehicles, museums, archives,
paint room, AC power control room, engine and pump room...etc.
AKA Halon
FK-5-1-12 is the best choice for yachts and high-speed ships engine room, engine room, communication, combat situation room... etc. AKA Halon FK-5-1-12 can quickly vaporize after use,
and is non-corrosive and non-conductive, so it has no damage to precision electronic components,
radar, navigation and other equipment
and
AKA Halon
FK-5-1-12 will not have the horrible state of foam or powder fire extinguishing agent after use.
AKA Halon
FK-5-1-12 has no residue after use, which means it will not affect the continuous
operation of the current work.

AKA Halon FK-5-1-12 stays in the atmosphere for a short time of about 5 days
and has an excellent environmental coefficient.

Product

FK-5-1-12

HFC-227ea

HFC-236fa

ODP

0

0

0

GWP

1

3800

14800

ALT (Atmospheric Lastance Time(per Year)

0.014   About 5 days

36.5

270

Large Safety Margin
Since
AKA Halon FK-5-1-12 provides a larger safety margin of 72-122% than Halon fire extinguishing agent, when used on ships and aircraft, its effective fire extinguishing concentration of 4.5~5.8% will not exceed the safety level l
imit.

Extinguishing agent

FK-5-1-12

HFC-227ea

Inert gas

CO2

Use concentration

4.5-5.8%

7.5-8.7%

34.2-40.6%

30-75%

NOAEL

10%

9%

43%

<5%

Safety margin

72-122%

5.9-20%

6-26%

Design concentration is equivalent

Since the use concentration of AKA Halon FK-5-1-12 is much lower than the NOAEL concentration,
the safety margin of
AKA Halon
FK-5-1-12 is the largest compared to other
Ha
lon
fire extinguishing agents.
If
AKA Halon FK-5-1-12 is used to extinguish a fire in a confined space,
it will not put humans, animals and animals in danger.

The engine turbine room, electronic computing center, or other cabins and engine rooms are
complex in structure, so it is difficult to calculate the remaining space volume, and the
calculation data of these used spaces is very important for calculating the effective
fire extinguishing concentration of the fire extinguishing agent.

Because the design concentration of the fire extinguishing agent is calculated based on
the room space, there are pipes, lines, machines and other obstacles in a very important room,
so the concentration of the fire extinguishing agent will easily exceed its NOAEL value when used.
Since AKA Halon FK-5-1-12 is liquid at room temperature and the storage pressure is low,
AKA Halon even in gas cylinders It can be done without being offline.
The liquid
AKA Halon FK-5-1-12 can efficiently use space and store the same amount of
Ha
lon fire extinguishing agent.
AKA Halon
FK-5-1-12 uses the same size of gas cylinder as the Hailong fire extinguishing agent.
AKA Haion FK-5-1-12 is a safe fire extinguishing agent that can be transported by air and
does not require special safe transport requirements.
AKA Halon FK-5-1-12 fire extinguishing agent is a very clean fire extinguishing material,
which is often used to protect very expensive properties, such as: collections of books,
documents, artworks, library cultural relics, showcases, archives, computers or


o
ther exquisite electronic originals.
AKA
FK-5-1-12 was originally designed for people's safety, property protection,
fire fighting and environmental considerations.

Due to the key nature of
AKA
FK-5-1-12 people redefine the definition of
"sustainable and rapid recovery of previous work" for clean fire extinguishing agents:


ODP is 0

GWP is 1

ALT (0.014 years) Atmospheric Lastance Time is 5 days

It is harmless to humans, animals and animals, as a clean fire extinguishing agent,
AKA Halon
FK-5-1-12 for protection.
There are many advantages to precious property.

According to the definition of clean fire extinguishing agent, there will be no residue after
use and it will not conduct electricity. After use, clean fire extinguishing agent will not
destroy precision parts or affect the operation of sensitive electronic components.

Water sprinklers and spray systems can effectively extinguish structural fires, but water
can cause damage to fragile and irreplaceable things.

Although the dry powder fire extinguishing system avoids the above-mentioned problems,
it has a large amount of solid residue, which is difficult to clean, and can cause damage to
precision equipment, hard disk drives, and electronic media.

Because the ODP of
AKA Halon FK-5-1-12 is 0, the lower GWP is 1, and the nature of the
shorter atmospheric retention time,
AKA Halon FK-5-1-12 is the first alternative that can
completely replace the Ha
lon
fire extinguishing agent. It can provide feasible, long-term
and sustainable protection for some places with special dangers.

1.  AKA Halon fire extinguishing agent FK-5-1-12 is the guardian of the earth's environment.
Ozone depletion potential ODP = 0

The global warming potential GWP is only 1

ALT (0.014 years) Atmospheric retention time is 5 days

It is currently the most environmentally friendly fire extinguishing agent in the world.

It is 1/3800 of heptafluoropropane, and the ALT stay in the atmosphere is 5 days.
It is a veritable green fire extinguishing agent.

2. AKA Halon fire extinguishing agent FK-5-1-12 has high fire extinguishing efficiency,
and the fire extinguishing concentration is 4.5% for class B fire.

The safety is good. It can be seen that the concentration of harmful effects NOAEL is 10%,
which is greater than 72~122% of its fire-extinguishing concentration.

Advantages such as safe use;

3. AKA Halon fire extinguisher is also the protector of various electronic and
electrical equipment.
FK-5-1-12 fire extinguishing agent has
Excellent electrical insulation performance,
passed the 110KV test.
FK-5-1-12 fire extinguishing agent not only ensure fire
extinguishing efficiency, but also meet the requirements of safety in use and
environmental protection.

AKA Halon ernments around the world and the international fire protection industry.

AKA Halon fire extinguishing agent FK-5-1-12 is a colorless, odorless, transparent and insulating liquid at room temperature. It is a new clean and green environmentally friendly fire extinguishing agent.
AKA Halon fire extinguishing agent has high fire extinguishing efficiency, environmental protection and cleanness, safe use, good insulation performance, Comprehensive advantages such as no damage to electronic precision equipment, can be applied to fire extinguishing systems in whole or local areas,
It is especially suitable for places where people are working but relatively closed, such as naval ships, advanced precision instruments, electronic computer rooms, museums, data processing centers, electronic control centers and other places. Currently in the world
.

AKA Halon has the advantages of high fire extinguishing efficiency, no water stains, no corrosion, low toxicity, strong insulation, convenient storage and transportation, and its ODP value is 0, GWP value is 1, and its environmental performance is excellent; it can be widely used in data centers and computer rooms , Museums, libraries, archives, oil and gas platforms, power plants, ships, power distribution rooms, rail transit and other places. As a new generation of environmentally friendly fire extinguishing agent, AKA Halon is compared with the old generation of fire extinguishing agent product heptafluoropropane, the GWP value of Chihailong fire extinguishing agent (global greenhouse effect potential) is only 1, while the GWP value of heptafluoropropane is 3800. This also means that the same fire extinguishing effect, the emission of greenhouse gases into the atmosphere is only 1/3800 of the original.
AKA Halon has a lifespan of only 5 days (ALT) in the atmosphere, which has huge advantages compared with sealong and fluoroalkane fire extinguishing agents.
At the same time, it has no obvious chemical reaction to commonly used rubber and plastic sealing materials, such as neoprene, butyl rubber, fluorinated rubber, EPDM, silicone polyester, nitrile rubber, etc., so FK-5-1 is used In the -12 system, these sealing materials can work normally.
And it is non-corrosive to commonly used metals, such as carbon steel, copper, aluminum, stainless steel and other materials, and will not damage electronic components and circuits.

On the other hand, because
AKA Halon is a liquid at room temperature, it is not a dangerous item, and it is under normal pressure.
It can be safely stored and transported in a wide temperature range (including air transport) in ordinary containers.

AKA Halon fire extinguishing agent can be widely used in fire extinguishing systems and portable fire extinguishers in all or local areas.
Especially suitable for electronic control centers, computer rooms, power distribution rooms, power distribution cabinets, wind turbine rooms, energy storage power stations, advanced precision instruments, museums, data processing centers, ship control rooms, protection of lithium batteries for new energy vehicles, and other fire protection
.
AKA Halon fire extinguishing agent gas has excellent arc extinguishing performance and insulation performance. It can be used as arc extinguishing gas for frequent operation of power system and high-speed breaking occasions, as well as for electronic equipment coolant and light metal smelting protection gas.
3-Pentanone, 1,1,1,2,2,4,5,5,5-nonafluoro-4-(trifluoromethyl)- (756-13-8)
AKA Halon is an important substitute for Hailong fire extinguishing agent. It is a fluorinated ketone compound. It is a clear, colorless, and odorless liquid, super pressurized with nitrogen, and stored in a high-pressure cylinder as part of the fire extinguishing system.
AKA Halon can be used as a wet cleaning agent for steam reactors and steam reactor parts, as well as for cleaning the unnecessary deposits accumulated in the gas phase reactor, etching the dielectric or metal materials in the gas phase reactor, and in the gas phase reactor Various materials doped in.
AKA Halon FK-5-1-12 is a new type of environmentally friendly clean fire extinguishing agent, used to replace Halon, Series of fire extinguishing agents such as hydrofluorocarbon compounds (HFC) and perfluorinated compounds (PFC).
It is stored as a liquid under normal temperature and pressure, and is discharged as a gas during use, leaving no residues, non-conductive, and helping to protect paper documents and electronic products with preservation value.

It has good environmental characteristics, does not destroy the ozone layer of the atmosphere, and has an extremely low GWP value. AKA Halon is a colorless, odorless, transparent liquid at room temperature and easily vaporizes. Its heat of evaporation is 1/25 of that of water.
This property allows it to rely on vaporization to absorb heat to achieve the effect of extinguishing fire.
It is worth noting that Chihailong has no obvious chemical reaction to commonly used rubber and plastic sealing materials, such as neoprene, butyl rubber, and ethylene-propylene rubber, and has no corrosive effect on commonly used metals, nor does it damage electronic components and circuits.
AKA Halon does not conduct electricity and does not remain after release, so it is suitable for protecting precision and valuable electronic equipment. In terms of fire extinguishing performance, the use concentration of FK-5-1-12 is 4%~6%, which is similar to Hailong 1301, lower than other gas fire extinguishing agents, and has high efficiency.
Compared with other fire extinguishing agents, AKA Halon outstanding advantage lies in its environmental friendliness.
According to the literature, the ozone depletion potential ODP of Chihailong fire extinguishing agent is 0, which means that it has no damaging effect on ozone.
AKA Halon global warming potential GWP is only 1, which is 1/3800 of heptafluoropropane,
and it stays in the atmosphere for 5 days.
It is a veritable green fire extinguishing agent.

In terms of safety, AKA Halon toxicity safety margin is as high as 67~150%,
which means that it is safer to the human body during use.
It has been approved by the US Environmental Protection Agency and can be used
in situations where people are present.

AKA Halon is currently the most perfect substitute for Halon.
Its excellent fire extinguishing performance and environmental friendliness determine
its wide application prospects in many important places, such as: manned communication room,
computer and electrical control room, chemical dangerous goods cargo compartments,
vehicle cockpits and engine compartments, power cabins of aircraft and ships, etc.

According to an official US report, after 2010, FK-5-1-12 was used in space shuttles and
spacecraft of the US military. AKA Halon FK-5-1-12 is a colorless, transparent and
insulating liquid at room temperature.
It is an environmentally friendly and clean new fire extinguishing agent.

AKA Halon FK-5-1-12 has been listed in
ISO14520-2006 "Physical Characteristics and System Design of Gas Fire Extinguishing System",
In standard documents such as NFPA2001 "Code for Design of Clean Gas Fire Extinguishing System",
the application design of this product has been specified.

AKA Halon fire extinguishing agent is a new type of Halon fire extinguishing agent substitute.
The fire extinguishing agent has excellent environmental performance and low toxicity characteristics.
It has comprehensive performances such as high fire fighting efficiency, environmental
protection and cleanness, safe use, and no damage to electronic precision equipment.

AKA Halon FK-5-1-12 clean fire extinguishing agent has good environmental protection
characteristics and has no destructive effect on the ozone layer.

The ODP is 0,
The global warming coefficient GWP is 1, and
T
he survival life in the
Atmospheric Lastance Time (ALT) is 0.014 years.

It is better than the widely used alternative Ha
lon fire extinguishing agent
(heptafluoropropane HFC-227ea, HFC-236fa) and so on.


These fluoroalkane fire extinguishing agents have an ODP value of 0, but their
GWP value is relatively large, 3
800 times that of FK-5-1-12 and has a negative effect
on global warming and climate change.

The environmental performance of
AKA Halon FK-5-1-12 fire extinguishing agent
meets the requirements of European and American environmental protection regulations.


AKA Halon FK-5-1-12 fire extinguishing agent has excellent fire extinguishing performance,
and its fire extinguishing concentration:


The extinguishing concentration of Class A fire is 3.5%,
The fire extinguishing concentration of Class B fire is 4.5, which is the closest to the
performance of Hailong fire extinguishing agent, and is much smaller than other
fluoroalkane sealong alternatives (5 for Hailong 1301; 7.5-8.7 for HFC-227ea; 30-75 for CO2).


AKA Halon FK-5-1-12 fire extinguishing agent can extinguish fires of Class A, B and C.
It is non-conductive and vaporizes quickly after spraying, leaving no residue.

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher fire equipment servicing fire extinguisher types kitchen fire extinguisher types of extinguishers kitchen extinguisher types of extinguishers
kitchen extinguisher kinds of fire extinguisher types of fires and extinguishers abc fire extinguisher

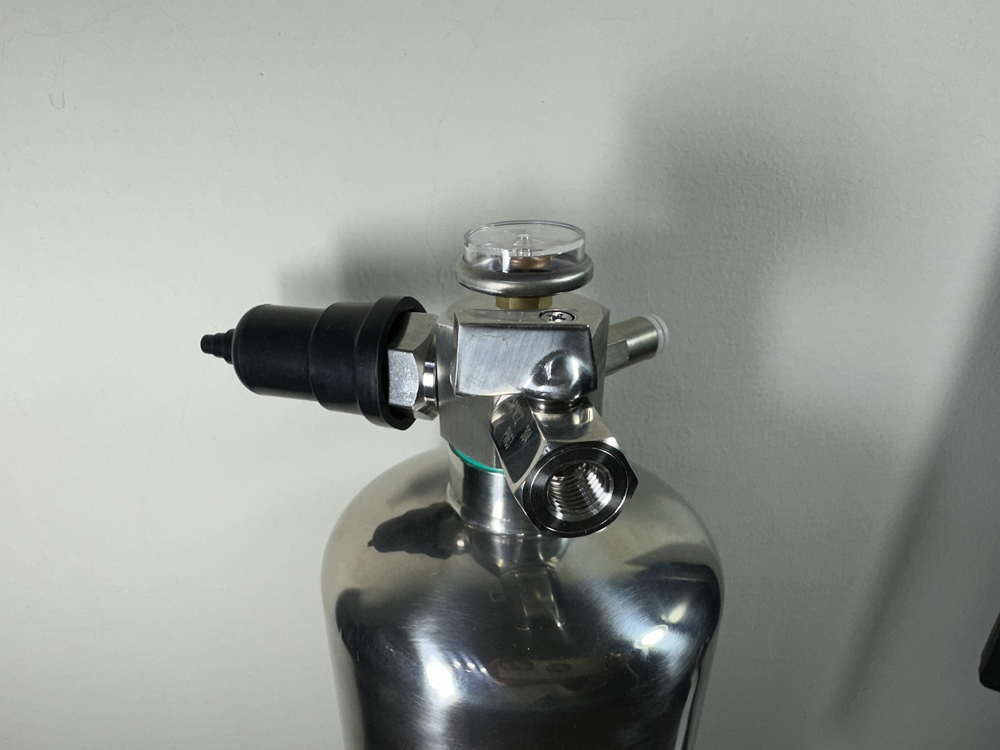

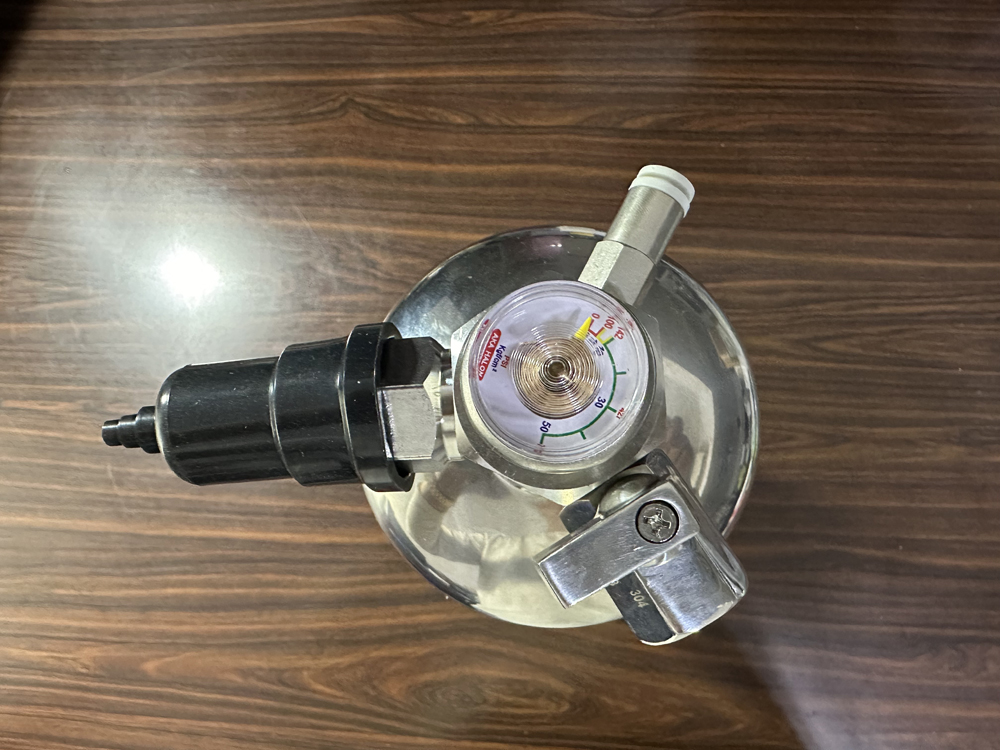

TypeAKA HALON
External materialStainless steel explosion-proof high pressure seamless steel cylinder
Internal padding
FK-5-1-12
Start conditions: electromagnetic start/mechanical emergency/manual start Response time: <8 seconds

Extinguishing type: Class A, B, C fire

Physical quantity

Numerical value

FK-5-1-12

3L

Release pattern

Direct

Work pressure

2.500Mpa

Operating temperature

0 -49

Extinguishing concentration

4.50 %

Detecting tube length

12M

Fluid dynamic viscosity (0℃ /25℃), centistokes (torks)

0.410.56

Critical temperature

168.66

Critical pressure Bar

18.66

Critical volume cc/mole 494.5
Critical density kg/m³ 639.1
The solubility weight ratio of water at 25℃ in FK-5-1-12 <0.001
25℃ steam pressure 25℃ bar(psia) 0.405.87
Insulation strength 25℃ N2=1 kv 2.3at
AKA Halon FK-5-1-12 is environmentally friendly:

Performance

Inert gas

FK-5-1-12

HFC-227ea

HFC-236fa

海龍1211

海龍1301

ODP

0

0

0

0

4

12

GWP

0

1

3800

9400

11300

6900

ALT

0

0.014

36.5

226

11

65

ODP: ozone depletion potential
GWP: Global Warming Potential
ALT:
Atmospheric Lastance Time (per /Year)

The safety of AKA Halon FK-5-1-12 to human body:

Performance

FK-5-1-12

HFC-227ea

CO2

Halon1301

Boiling Point ℃

49.2

-16.4

-78.4

-57.8

Extinguishing concentration

4-6%

7.5-8.7%

30-75%

5%

NOAEL

10%

9%

5%

5%

Safety Value

67-100%

3-20%

  Designed concentration higher than NOAEL, easy to lethal

Non

NOAELNon-Observed Adverse Effect Level



ONLINE SALE
https://www.taiwanwhite.com/product_1405260.html
AKA Halon
CAS Number:756-13-8
Chemical
CodeFK-5-1-12
Molecular
FormulaC6F12O
Structural
Formula

FirDetectorTW   FirExtinguisherMRItw   FirExtinguisher MRI

AKA Halon900TW      AKA Halon      Water Halon
FireExtinguisherPilot      CarFireExtinguisher      FireExtinguisherBoat
WaterHalonFireExtinguisherTW     FireGuardTW     FireExtinguisherTwHOME
fire extinguisher issuu      fire extinguisher water issuu

AutopureTwHOME

e-Mail Us      Payment     SkyPe: autopure     mexa@autopure.com
ONLINE SALES
www.taiwanwhite.com

MEXA CO., LTD.  (Since 1979)
The Best Fire Extinguisher Manufacturer in Taiwan
Tel. +886-2-23657700 Fax.+886-2-23657702

Office: 3F., No. 128 Ku Ling Street (GuLing Street), Taipei 100, Taiwan, R.O.C.

Factory:No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan 709, Taiwan Tel.09-1019-6666
67-00-3434
FACTORY MAP

www.autopure.com

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing
extinguisher
distinguisher fire extinguisher types

types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types

types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher

halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher

carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts



海龍滅火器HALON海龍1211HALON 1211 – CF2ClBr)海龍 1301HALON 1301 – CF3Br)鹵化烷
HFC-23
FE-13)、HFC-236faFE-36六氟丙烷 236fa HFC-227eaFM-200NAF S125
七氟丙烷 227eaHCFC-123Halotron Ihcf-236 fe-36 新海龍 naf-236 高溫高效能環保氣體滅火器1020
hfc-236 海龍 環保氣體 滅火器 車用 廚房 家庭用 蓄壓式 5P 10P hfc-227 NAF滅火器 潔淨藥劑滅火器
二氧化碳滅火器 乾粉滅火器 強化液滅火器 中性強化液滅 火器 自動滅火設備 自動撒水滅火設備
金屬火災滅火器 消防設備師 消防設備士 消防安全
