滅火器
Fire Extinguisher
FK-5-1-12 Novec 1230 AKA Halon

Fire Extinguisher Manufacturer
304L Stainless Steel Bottled

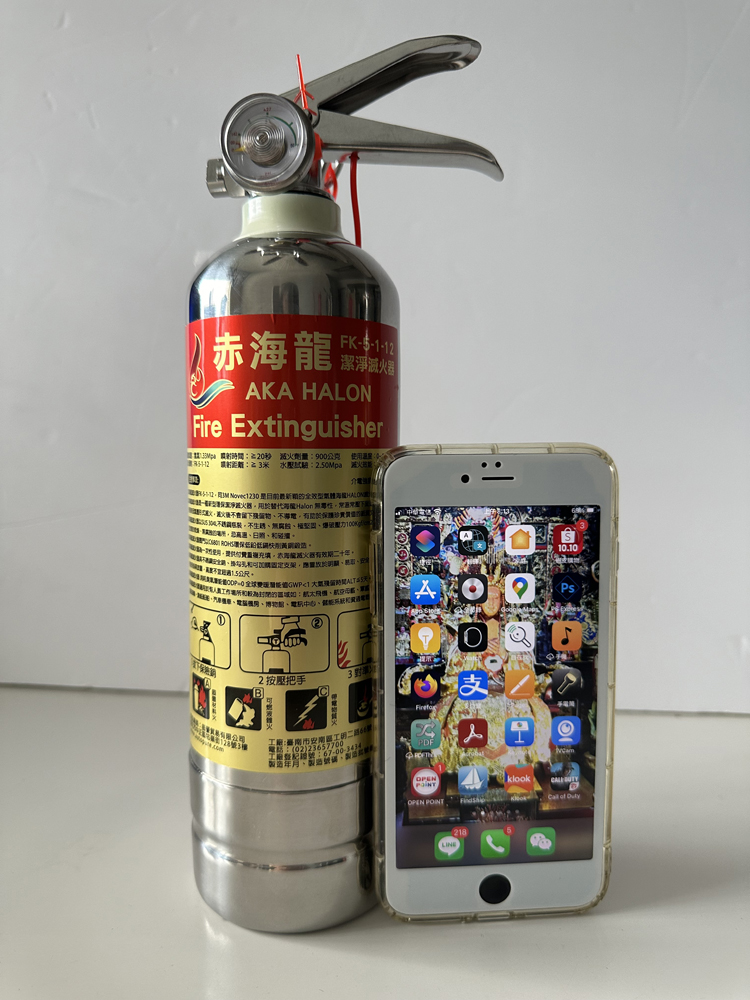

AKA0438

Aka Halon 1P (700ml) FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 0.69Kgs.
Size:11.7"x3.0"(H 29.80cm x Diameter 7.60cm)
Capacity: 1.54 lbs. (0.70-1.10Kgs.)
Weight: 3.31 lbs. (1.30-1.50Kgs.)

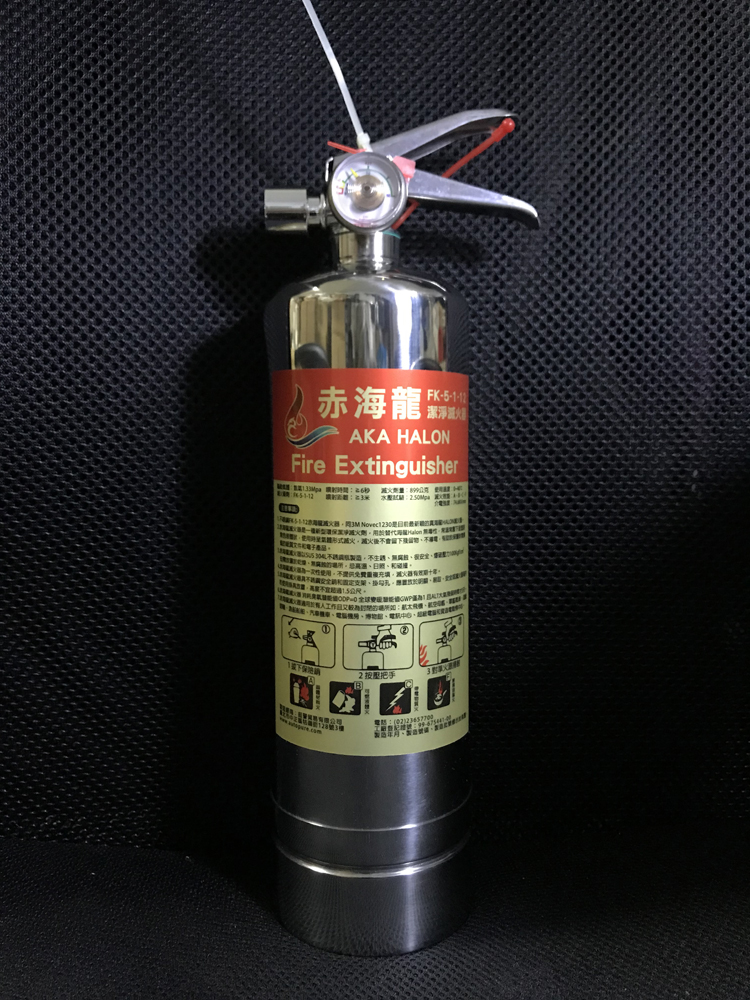

AKA9286

Aka Halon 3P (980ml) FK-5-1-12 Novec 1230
Refillable 304L Stainless Steel Bottled Total Weight 1.70Kgs.
Size:13.3"x3.4"(H 33.80cm x Diameter 8.60cm)
Capacity: 1.88 lbs. (0.85-1.10Kgs.)
Weight: 3.36 lbs. (1.65-1.90Kgs.)

Aka Halon 1L (980gm) US$99/pc EXW Taiwan
FK-5-1-12 Novec 1230

Refillable 304L Stainless Steel Bottled Total Weight 1.65Kgs
Extinguisher Agent Pressure Fire Class Capacity Barrel Weight Discharge Time Range Max. Item #
FK-5-1-12 2.8Mpa ABCDF 980ml 304L S.S. 0.90-1.10 Kgs 15 to 25 sec >5M AKA980



AKA HALON2
Reflex 1230 Reflex 2 ReflexOFeu brand new unit Novec 1230 (Pressurized) 2Kg

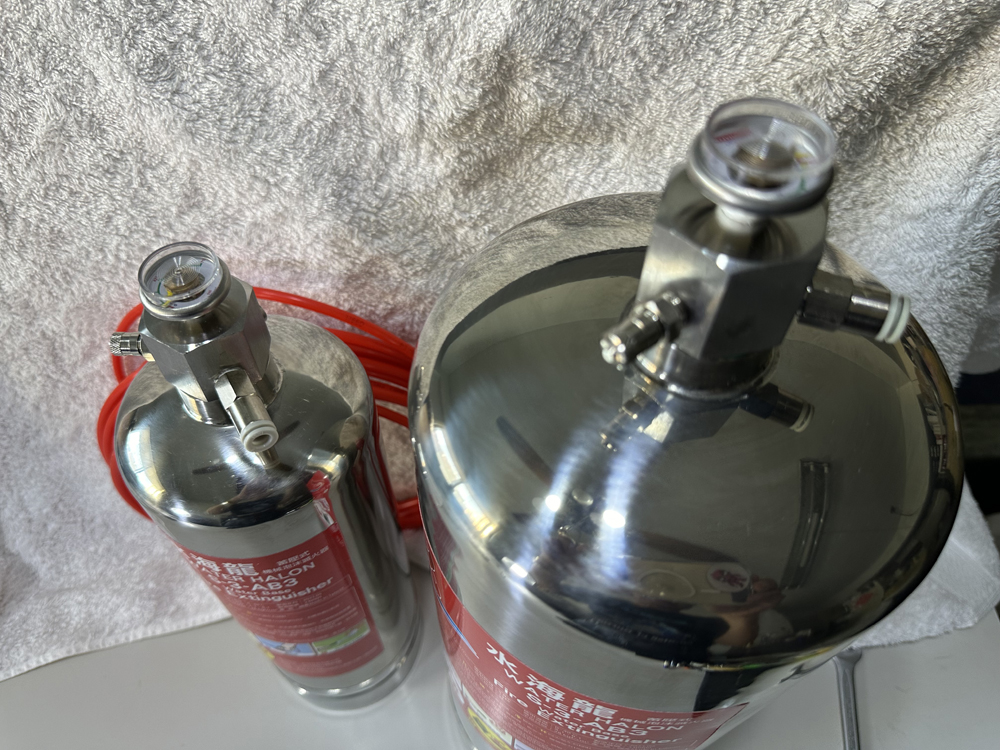

0608
AKA Halon FK-5-1-12 is no corrosive, has good insulating property, never damages electronic equipment, precision instruments, paper documents, cultural relics and antiques, generates no residue after use, and may substitute for sprinkler system, and dry chemical and foam extinguishing system to protect the high-valued assets.
FK-5-1-12 Novec 1230 extinguishing agent has excellent extinguishing characteristics and it can put out Type A, B and C fire, is non-conductive and after ejection it fast evaporates without any residue. Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly approaches that of halon extinguishing agent.

FK-5-1-12 clean extinguishing agent has good environmental harmony, and its
Ozone Depletion Potential (ODP) is 0,
Global Warming Potential (GWP) <1.0, and the
Atmospheric life Time (ALT) is 0.014 year

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD505000mg/kg)

Acute dermal

Low (LD502000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12  extinguishing agent ensures the extinguishing efficiency,
meets the requirements on use safety, is almost harmless to human body, and is much suitable for
extinguishing and protection of the person-residing place.

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD505000mg/kg)

Acute dermal

Low (LD502000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.




Quality specification
Product Purity % Water Content ppm Acidity(as HCI) ppm Non-volatile Residue % Suspended Matter or Sediment
FK-5-1-12 99.7 10 3 0.01 None
FK-5-1-12 Physical Properties:

Property

Unit Value

Molecular Mass

316.4

Boiling Point at 1013bar

49.2

Freezing Point

-108

Liquid Density 25

1.6g/ml

Liquid Viscosity

0.524 cp

Critical Temperature

168.66

Critical Pressure

18.66 bar

Critical Density 639.1kg/m³
Heat Of Vaporization At Boiling Point 88 kj/kg
Solubility Of Water in FK-5-1-12 25 <0.001 wt%
Vapour Pressure 25℃  0.405.87)bar(psia)
Dielectric Strength ~ 110KV/mm
FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product

Item

FK-5-1-12

HFC-227ea

HFC-236fa

Halon1211

Halon1301

ODP

0

0

0

4

10

GWP

1

3800

9400

11300

6900

ALT

0.014

36.5

226

11

65

ODP: Ozone Depletion Potential
GWP: Global Warming Potential
ALT:
Atmospheric Life Time (per Year)
Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is much lower than NOAEL value,
and has extremely low toxicity and thus high safety.
The extinguishing agent is registered in USE.P.A.T.S.C.A.
Safety Margins= FK-5-1-12 Use Concentration / Use Concentration X 100%
abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher fire equipment servicing fire extinguisher types kitchen fire extinguisher types of extinguishers kitchen extinguisher types of extinguisherskitchen extinguisher kinds of fire extinguisher types of fires and extinguishers abc fire extinguisher



The chemical name of FK-5-1-12 is perfluoro (2-methyl-3-pentanone),
its CAS number is 756-13-8,
chemical code is FK-5-1-12, molecular formula is C6F12O
and structural formula is:

 FK-5-1-12 AKA Halon1230
OEM Production Of Customer's Own Brand Products

Extinguisher Agent Pressure Fire Class Capacity Barrel Weight Discharge Time Range Max. Item #
FK-5-1-12 2.8Mpa ABCDF 700ml 304L S.S. 0.80-1.00 Kgs 10 to 15 sec >3M AKA700
FK-5-1-12 2.8Mpa ABCDF 980ml 304L S.S. 0.90-1.10 Kgs 15 to 25 sec >3M AKA980
FK-5-1-12 2.8Mpa ABCDF 2000ml 304L S.S. 3.00-3.25 Kgs 30 to 40 sec >3M AKA2000
FK-5-1-12 2.8Mpa ABCDF 3000ml 304L S.S. 4.50-4.90 Kgs 45 to 60 sec >3M AKA3000
ONLINE SALE
https://www.taiwanwhite.com/product_1489017.html

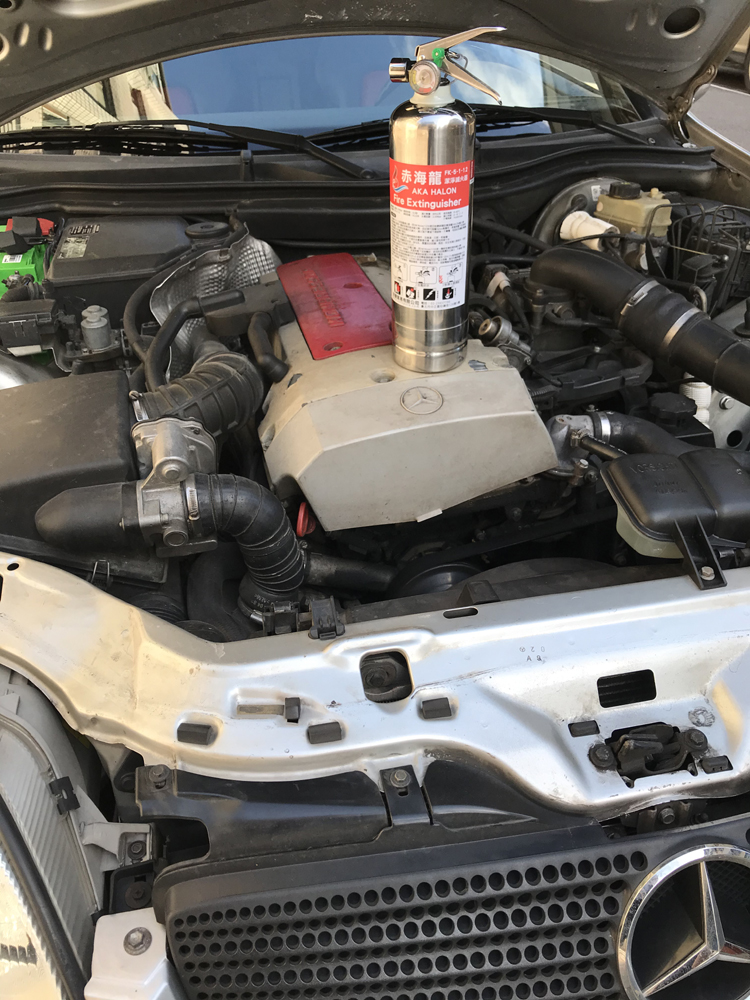

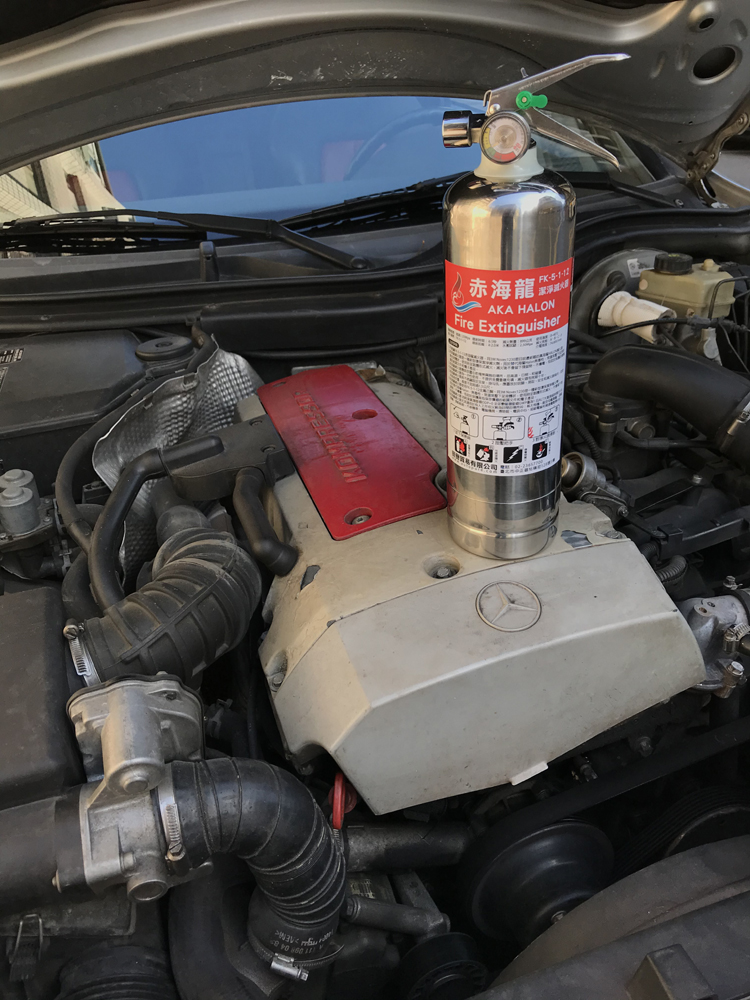

Fire Extinguisher AKA Halon 700 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA700)

Small enough 700ml to stash in even the most compact cars, the AKA Halon 700 Auto Fire Extinguisher is true Halon gas to handle fires common in cars, such as gasoline,
oil, grease or electrical blazes.
Will work on all kinds of fires, trash, wood, and paper, flammable liquids and electrical blazes.

AKA Halon 700 is about 13-inches tall, the size of a 0.7-liter stainless steel bottle and small enough to stash in a trunk, in some larger glove compartments or even under seats.
Owners who have had to use it said it put out small automotive fires quickly and easily. It comes with a pressure gauge and a mount engineered to provide additional stability in a car.
Note that like many other auto-specific fire extinguishers, AKA Halon 700 is refillable.
It comes with a twenty-year warranty.
AKA700 Each US$89/pc EXW Taiwan
Send Via UPS Worldwide Expedited 7-20days Door To Door Service
Payment By PayPal: autopure@ms3.hinet.net
Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 980 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA980)

Small enough 980ml to stash in even the most compact cars, the AKA Halon 980 Auto Fire Extinguisher is true Halon gas to handle fires common in cars, such as gasoline,
oil, grease or electrical blazes.
Will work on all kinds of fires, trash, wood, and paper, flammable liquids and electrical blazes.

AKA Halon 980 is about 13-inches tall, the size of a 1-liter stainless steel bottle and small enough to stash in a trunk, in some larger glove compartments or even under seats.
Owners who have had to use it said it put out small automotive fires quickly and easily. It comes with a pressure gauge and a mount engineered to provide additional stability in a car.
Note that like many other auto-specific fire extinguishers, AKA Halon 980 is refillable.
It comes with a twenty-year warranty.
AKA980 Each US$99/pc EXW Taiwan
Send Via UPS Worldwide Expedited 7-20days Door To Door Service
Payment By PayPal: autopure@ms3.hinet.net
Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 2L For All Kinds Of Fire - Stainless Steel Bottle (AKA2000)

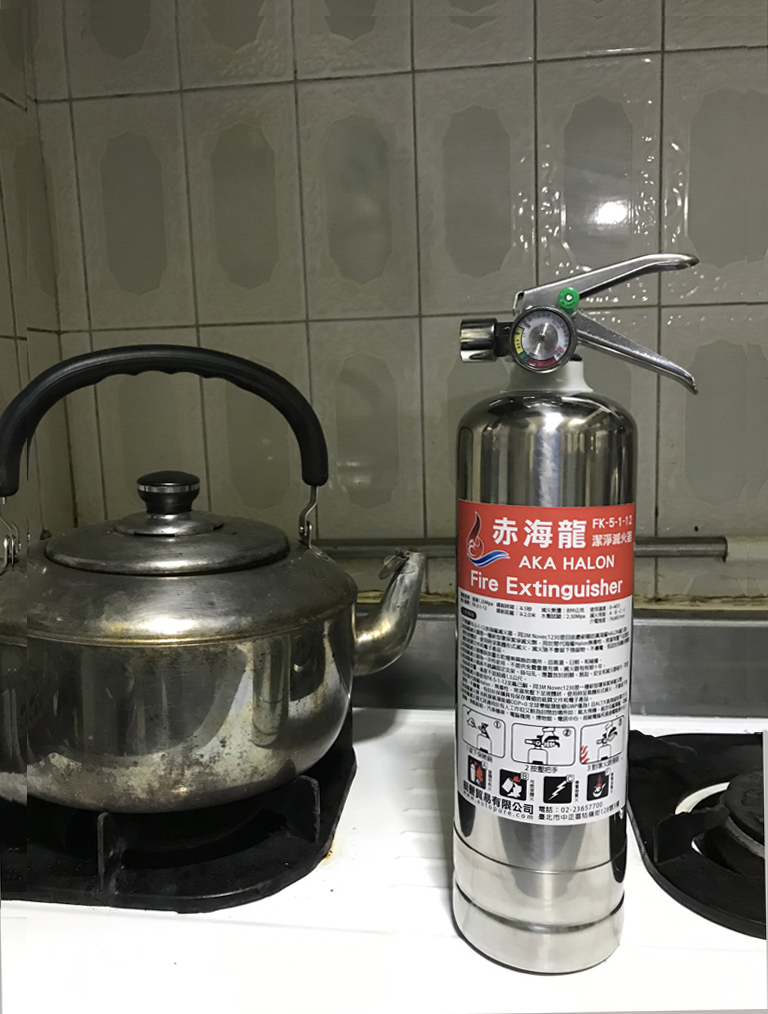

AKA Halon 2L is long-lasting and reliable, and a perfect size for general home use.
This is a chemical fire extinguisher that will work on all kinds of fires: trash, wood, and paper, flammable liquids, and electrical blazes. It weighs 8 pounds, has 5 pounds of Halon FK-5-1-12

The AKA Halon 2L has stainless steel overall, forged C6801 valves and comes with a wall mount and a pressure gauge. Reviewers like that unlike many home fire extinguishers, this one is refillable. They also say that its 40-second discharge is enough to put out substantial household blazes, but at about 17 inches tall, with a quick release frame stand is able to fit in a cabinet or in other tight storage spaces. The stainless steel handle and trigger also earns a lot of praise for sturdiness and durability compared to cheaper plastic versions. It comes with a twenty-year warranty.

AKA2000 Each US$199/pc EXW Taiwan
Via UPS Worldwide Expedited 7-20days Door To Door Service
Payment By PayPal: autopure@ms3.hinet.net
Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 3L For All Kinds Of Fire - Stainless Steel Bottle (AKA3000)

AKA Halon 3L is very similar to the AKA Halon 2L, it weighs 10 pounds, has 7 pounds of Halon FK-5-1-12 fire extinguishing agent. Like the AKA Halon 2L it is also a chemical fire extinguisher that can handle all types of blazes, whether they are conventional, liquid, or electrical fires.

Like the AKA Halon 2L the AKA Halon 3L is refillable and comes with a wall mount and a pressure gauge. Discharge time is 45 to 50 seconds, and spray distance is greater than 16 feet. It is about an inch taller than the AKA Halon 2L but a few inches narrower, so it won't take up too much space. Reviewers like the sturdy stainless steel trigger and say the unit feels durable. Those who've had to use this extinguisher say it did its job well, but potential buyers should also note that AKA Halon has been plagued by a significant number of fire-extinguisher recalls in recent years. It comes with a twenty-year limited warranty.

66-1 66-2

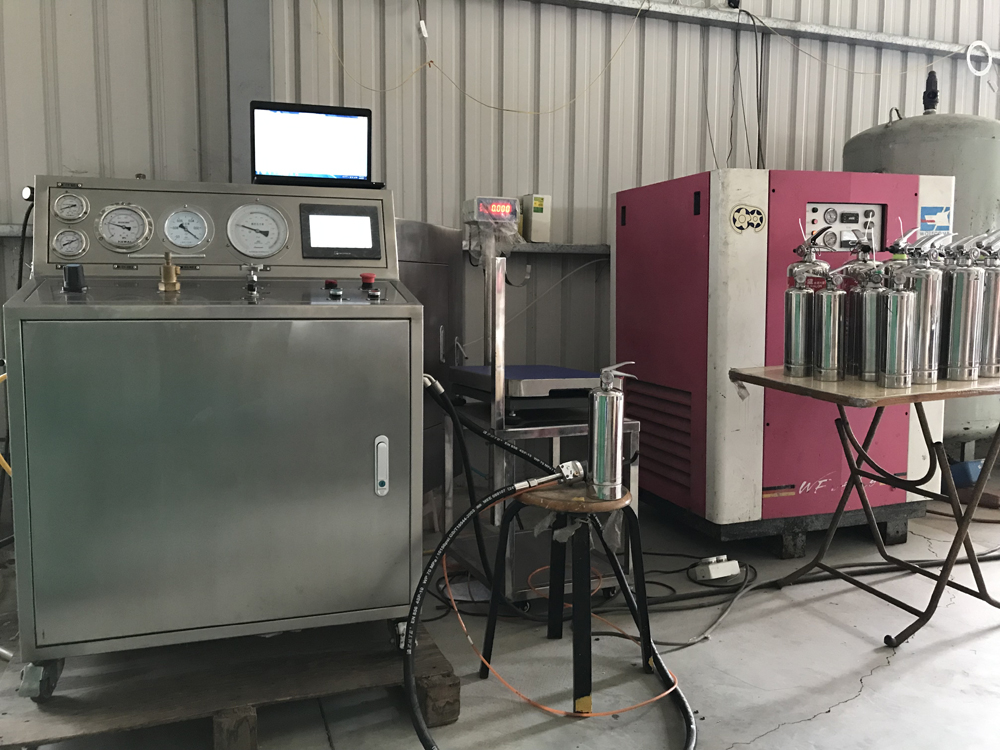

One Touch Fire Extinguisher Filling and Refilling Machine
Novec
AKA3000 Each US$499/pc EXW Taiwan
Via UPS Worldwide Expdited 7-20days Door To Door Service
Payment By PayPal: autopure@ms3.hinet.net
Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.
