 Fire Extinguisher Filling - Refilling Machine
For Liquid Type Extinguisher Agent

Water fire extinguisher Pressurized water fire extinguisher Refillable water fire extinguisher Water fire extinguisher refillable
Fire extinguisher water can Refillable fire extinguisher water Fire extinguisher water bottle Fire extinguisher water
Fire extinguisher water type

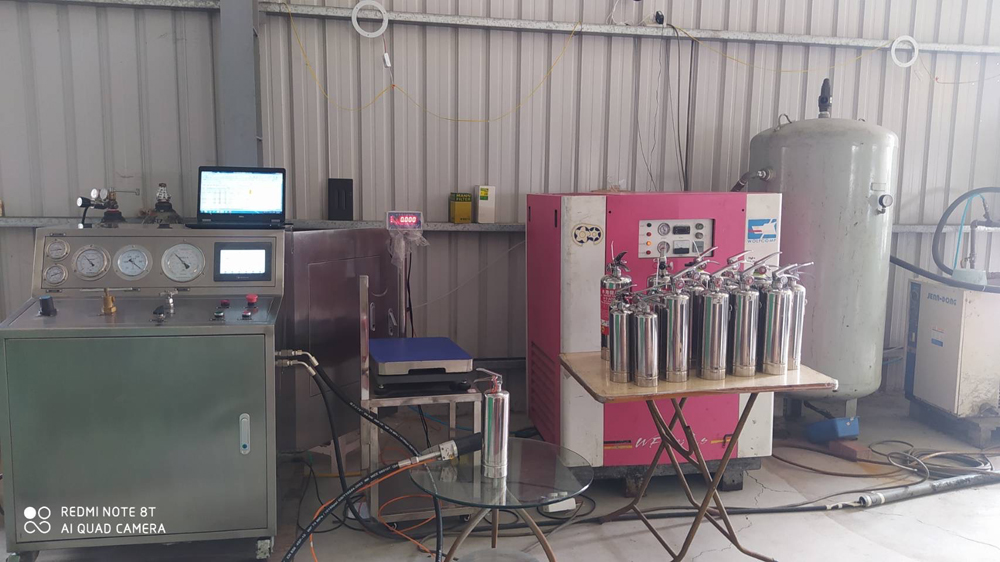

Screen Touch Fire Extinguisher Filling - Refilling Machine
Filling Machine

Automatic Filling Machine
 Filling Machine+Auto Weight Filling+Vacuum Pump
Filling machine including air-driven gas filling pump, precision pressure gauge,
pressure reducing valve, high pressure electromagnetic valve, electric control part,
electronic scale and vacuum pump...etc.
Machine Characteristics:
 Filling machine using the compressed air as power source,
through the airdriven gas booster and filling pump driving the Novec 1230 or Water filling and conveying,
when the transmission weigh reaches a certain value, the sensor signal is transferred to the gas electromagnetic valve then driven air will stop autometically and pump stop to work too.
Then connecting the nitrogen gas source open the high pressure nitrogen gas vale, star the nitrogen injection.
When precision pressure gauge shows the needed nitrogen pressure then nitrogen valve closed, filling finished.
It has the characteristics of small volume, light weigh, simple operation, reliable performance.
Especially suitable for the filling of Water and Novec 1230 in fire extinguisher industry.
Main Parameters
 Driving Source: air compressor 7-9kgf/cm2 (100-125psi)air pressure
Extinguisher Agent: Novec 1230 or Water, Nitrogen
Boost Ratioo: 6:1
Max Output: 4.80Mpa
Drive Air Inlet Port: Fast Insert 1/2" PP20-SP/PH20-SH
Extiguisher Agent/Nitrogen/High Pressure Gas Out Let Port:
M14x1.5_M18x1.5-ZG3/8
Operating Procedure - Screen Touch
 1. Add Rubricating (Antifreeze machanical oil or low condensate hydraulic oil)
2. Compressed air source presure 7-9kgf/cm2 (100-125psi)
3. Setting degree of vaccum -0.085Mpa_-0.09Mpa
Setting filling extinguisher agent WEIGHT 0.50_10.00KGS
Settle filling nitrogen 2.0_3.5Mpa
4.Open the vacuum pump switch, star to vacuum all the filling bottles.
5.Vacuumed bottle filling extinguisher Agent and Nitrogen, individually.
6. It should need to discharge remained gas and liquide via drain vale,
after each filling process, then able go for the next filling process.

Note: Vaccum for 150L liter bottle takes about 5 minutes
Filling time is about 6_8 kgs per minute

Machine Size: 850x680x1040cm
Auto Weight Size:500x400x512cm

AKA Halon H2O-N2
Fire Extinguisher Filling - Refilling Machine

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher fire equipment servicing fire extinguisher types kitchen fire extinguisher types of extinguishers kitchen extinguisher types of extinguishers kitchen extinguisher kinds of fire extinguisher types of fires and extinguishers abc fire extinguisher
PRESSURE REDUCING VALVE Stainless Steel
Pressure

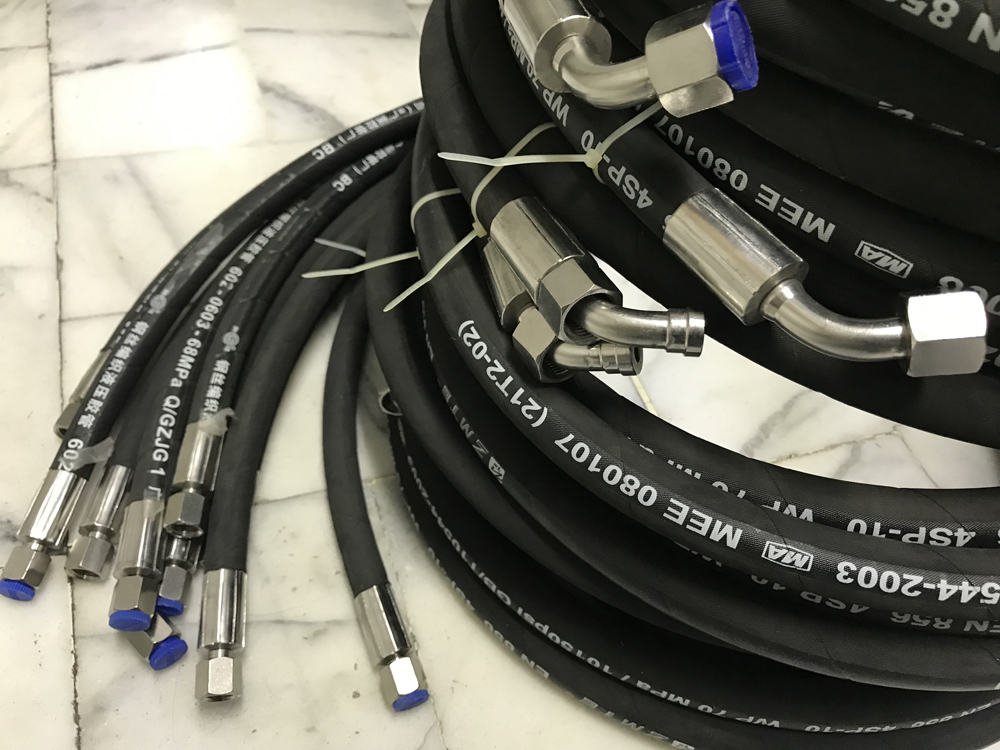

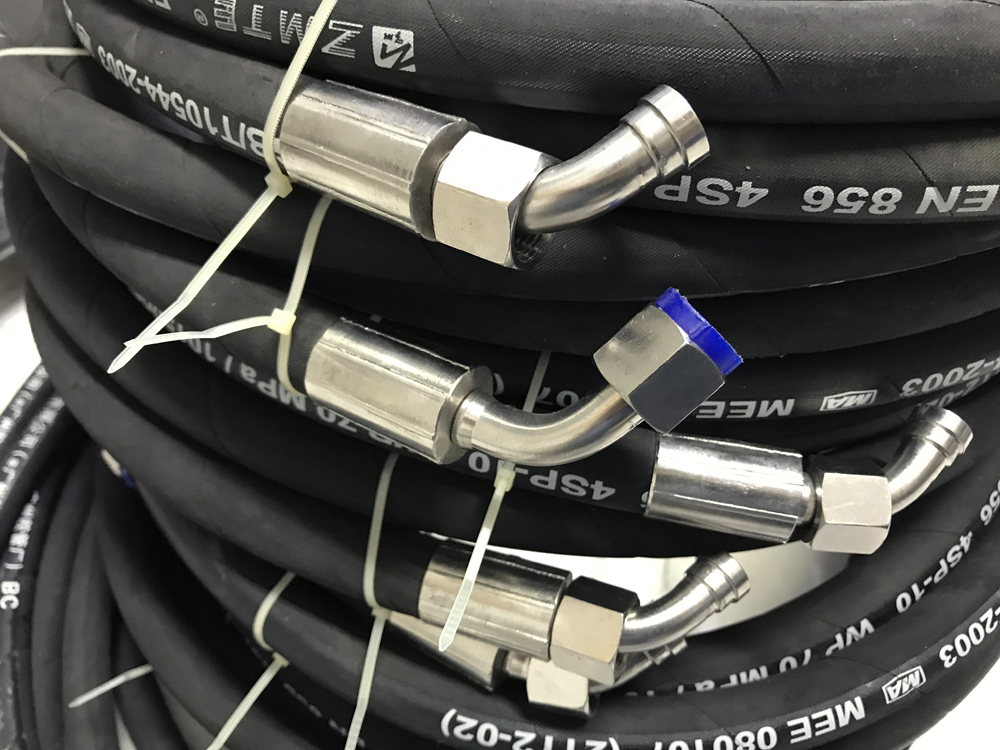

High Pressure Hose
Hose Hose

AKA Halon H2O-N2
Fire Extinguisher Manufacturer
Stainless Steel 304L Series

3L-211111

Aka Halon 3L 2L
304L Stainless Steel Bottle

Aka Halon 900ml
304L Stainless Steel Bottle

　

AKA HALON2

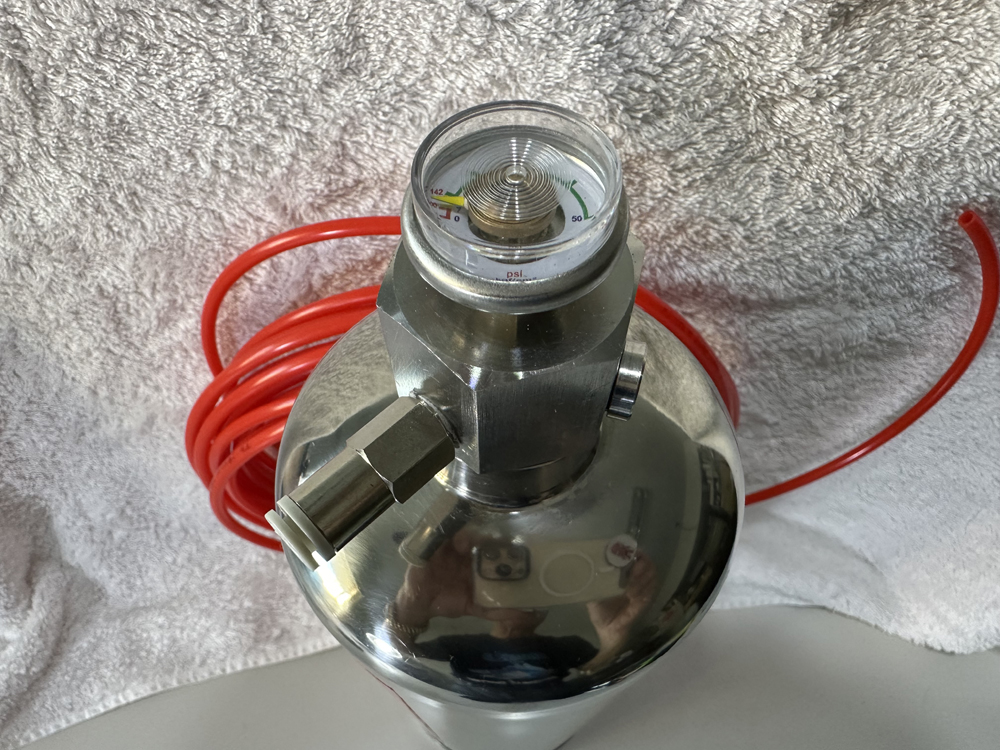

Reflex 1230 Reflex 2 ReflexOFeu brand new unit Novec 1230 (Pressurized) 2Kg
0610
AKA HALON1 – AKA HALON12301①
 Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 1L - 3P - 2m³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
 Dimensions: Dia. 86mm x H 330mm x W 86mm
Red tube high pressure hose: 6mm 25 meters
 90∘Fast Connector*2_180∘Fast Connector*4_End Connector*1
 Dimensions: 13” x 3.39” (bottle height 33cm x width 8.60cm x diameter 8.60cm)
Total weight: 1.65-1.90kg
Injection time: ≧20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength: ≧40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700

 AKA HALON2 – AKA HALON1230②
 Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 2L - 5P - 2m³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
 Dimensions: Dia. 110mm x H 390mm x W 110mm
Red tube high pressure hose: 6mm 25 meters
 90∘Fast Connector*2_180∘Fast Connector*4_End Connector*1
 Dimensions: 15.36” x 4.33” (bottle height 39cm x width 11cm x 11cm)
Total weight: 2.90-3.2kg
Injection time: ≧20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength: ≧40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700
AKA HALON3 – AKA HALON1230③
 Model: FK-5-1-12
Main ingredient: C6F12O
Content capacity: 3L - 10P - 3m³
Type: FK-A51120 clean fire extinguisher
Accumulation pressure: Nitrogen 13.70±0.7kgf/cm²
 Dimensions: Dia. 130mm x H 440mm x W 130mm
Red tube high pressure hose: 6mm 25 meters
 90∘Fast Connector*2_180∘Fast Connector*4_End Connector*1
 Dimensions: 17.32” x 5.12” (bottle height 3cm x width 13cm x bottle 13cm)
Total weight: 4.70-5.0kg
Injection time: ≧20 seconds
Hydrostatic test: 28 kgf/cm²
Operating temperature: 0~40℃
Dielectric strength: ≧40kV/mm
Pressure switch: Euroswitch (1-10Bar optional)
Fire-fighting performance: A, B, C, D, F and K
Validity period: 20 years
Production date: marked on the bottom of the S.S. bottle
Manufacturer's name: Mexa Co., Ltd.
Factory registration certificate number: 67-00-3434
Telephone:886 (2)23657700
AKA Halon FK-5-1-12 is no corrosive, has good insulating property, never damages electronic equipment, precision instruments, paper documents, cultural relics and antiques, generates no residue after use, and may substitute for sprinkler system, and dry chemical and foam extinguishing system to protect the high-valued assets.
FK-5-1-12 extinguishing agent has excellent extinguishing characteristics and it can put out Type A, B and C fire, is non-conductive and after ejection it fast evaporates without any residue. Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly approaches that of halon extinguishing agent.

Ozone Depletion Potential Of Zero
FK-5-1-12 clean extinguishing agent has good environmental harmony, and its Ozone Depletion Potential (ODP) is 0, Global Warming Potential (GWP) <1.0, and the Atmospheric life Time (ALT) is 0.014 year

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50＞100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD50＞5000mg/kg)

Acute dermal

Low (LD50＞2000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.

Results of toxicity test of FK-5-1-12

Test item

Test result

4-hour acute inhalation

Almost no toxicity (LC50＞100000ppm)

Carcinogenicity

No carcinogenicity

Acute oral

Low (LD50＞5000mg/kg)

Acute dermal

Low (LD50＞2000mg/kg)

Irritation to eyes

No irritation

Irritation to skin

No irritation

Allergy to skin

Non-skin sensitizer

Chromosome aberration

Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.

Quality specification

Product

Purity/%

Water

content/

ppm

Acidity

(as HCl)/

ppm

Non-volatile

residue(%)

Suspended

matter
 or sediment

FK-5-1-12

≥99.7

≤10

≤3

≤0.01

NONE

　Forest Fire


　

FK-5-1-12 Physical Properties：

Property

Unit Value

Molecular Mass

316.4

Boiling Point at1013bar

49.2℃

Freezing Point

-108 ℃

Liquid Density 25℃

1.6g/ml

Liquid Viscosity

0.524 cp

Critical Temperature

168.66℃

Critical Pressure

18.66 bar

Critical Density 639.1kg/m³
Heat Of Vaporization At Boiling Point 88 kj/kg
Solubility Of Water in FK-5-1-12 25℃ <0.001 wt%
Vapour Pressure 25℃  0.40（5.87）bar(psia)
Dielectric Strength ~ 110KV/mm
FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product：

Item

FK-5-1-12

HFC-227ea

HFC-236fa

Halon1211

Halon1301

ODP

0

0

0

4

10

GWP

1

3800

9400

11300

6900

ALT

0.014

36.5

226

11

65

ODP: Ozone Depletion Potential
GWP: Global Warming Potential
 ALT:Atmospheric Life Time (per Year)
Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is much lower than NOAEL value,
and has extremely low toxicity and thus high safety.
The extinguishing agent is registered in USE.P.A.T.S.C.A.
Safety Margins= FK-5-1-12 -Use Concentration / Use Concentration X 100%

　

The chemical name of FK-5-1-12 is perfluoro (2-methyl-3-pentanone), its CAS number is 756-13-8, chemical code is FK-5-1-12, molecular formula is C6F12O, and structural formula is:

 FK-5-1-12 AKA Halon-Novec1230
 OEM Production Of Customer's Own Brand Products

Extinguisher Agent Pressure Fire Class Capacity Barrel Weight Discharge Time Range Max. Item #
FK-5-1-12 2.8Mpa ABCDF 980ml 304L S.S. 0.90-1.10 Kgs 15 to 25 sec >5M AKA980
FK-5-1-12 2.8Mpa ABCDF 2000ml 304L S.S. 3.00-3.25 Kgs 30 to 40 sec >5M AKA2000
FK-5-1-12 2.8Mpa ABCDF 3000ml 304L S.S. 4.50-4.90 Kgs 45 to 60 sec >5M AKA3000



Fire Extinguisher AKA Halon 700 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA700)

Small enough 980ml to stash in even the most compact cars, the AKA Halon 700 Auto Fire Extinguisher is true Halon gas to handle fires common in cars, such as gasoline,
oil, grease or electrical blazes.
Will work on all kinds of fires, trash, wood, and paper, flammable liquids and electrical blazes.

AKA Halon 700 is about 13-inches tall, the size of a 0.70-liter stainless steel bottle and small enough to stash in a trunk, in some larger glove compartments or even under seats.
Owners who have had to use it said it put out small automotive fires quickly and easily. It comes with a pressure gauge and a mount engineered to provide additional stability in a car.
Note that like many other auto-specific fire extinguishers, AKA Halon 700 is refillable.
It comes with a twenty-year warranty.
AKA700 Each US$89/pc EXW Taiwan
Send Via UPS Worldwide Expedited 7-20days Door To Door Service
 Payment By PayPal: autopure@ms3.hinet.net
 Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 980 Best For The Car Auto Fire Extinguisher Stainless Steel Bottle (AKA980)

Small enough 980ml to stash in even the most compact cars, the AKA Halon 980 Auto Fire Extinguisher is true Halon gas to handle fires common in cars, such as gasoline,
oil, grease or electrical blazes.
Will work on all kinds of fires, trash, wood, and paper, flammable liquids and electrical blazes.

AKA Halon 980 is about 13-inches tall, the size of a 1-liter stainless steel bottle and small enough to stash in a trunk, in some larger glove compartments or even under seats.
Owners who have had to use it said it put out small automotive fires quickly and easily. It comes with a pressure gauge and a mount engineered to provide additional stability in a car.
Note that like many other auto-specific fire extinguishers, AKA Halon 980 is refillable. It comes with a twenty-year warranty.
AKA980 Each US$99/pc EXW Taiwan
Send Via UPS Worldwide Expedited 7-20days Door To Door Service
 Payment By PayPal: autopure@ms3.hinet.net
 Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 2L True Halon Substitute For All Kinds Of Fire - Stainless Steel Bottle (AKA2000)

AKA Halon 2L is long-lasting and reliable, and a perfect size for general home use.
This is a chemical fire extinguisher that will work on all kinds of fires: trash, wood, and paper, flammable liquids, and electrical blazes. It weighs 8 pounds, has 5 pounds of Halon FK-5-1-12

The AKA Halon 2L has stainless steel overall, forged C6801 valves and comes with a wall mount and a pressure gauge. Reviewers like that unlike many home fire extinguishers, this one is refillable. They also say that its 40-second discharge is enough to put out substantial household blazes, but at about 17 inches tall, with a quick release frame stand is able to fit in a cabinet or in other tight storage spaces. The stainless steel handle and trigger also earns a lot of praise for sturdiness and durability compared to cheaper plastic versions. It comes with a twenty-year warranty.

AKA2000 Each US$199/pc EXW Taiwan
Via UPS Worldwide Expedited 7-20days Door To Door Service
 Payment By PayPal: autopure@ms3.hinet.net
 Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

Fire Extinguisher AKA Halon 3L True Halon Substitute For All Kinds Of Fire - Stainless Steel Bottle (AKA3000)

AKA Halon 3L is very similar to the AKA Halon 2L, it weighs 10 pounds, has 7 pounds of Halon FK-5-1-12 fire extinguishing agent. Like the AKA Halon 2L it is also a chemical fire extinguisher that can handle all types of blazes, whether they are conventional, liquid, or electrical fires.

Like the AKA Halon 2L the AKA Halon 3L is refillable and comes with a wall mount and a pressure gauge. Discharge time is 45 to 50 seconds, and spray distance is greater than 16 feet. It is about an inch taller than the AKA Halon 2L but a few inches narrower, so it won't take up too much space. Reviewers like the sturdy stainless steel trigger and say the unit feels durable. Those who've had to use this extinguisher say it did its job well, but potential buyers should also note that AKA Halon has been plagued by a significant number of fire-extinguisher recalls in recent years. It comes with a twenty-year limited warranty.

AKA3000 Each US$499/pc EXW Taiwan
Via UPS Worldwide Expdited 7-20days Door To Door Service
 Payment By PayPal: autopure@ms3.hinet.net
 Or Inform Your
1)Receiver Name
2)Receiver Telephone Number
3) Receiver Email
4)Receiver Address & Post Code
We Will Issue A PayPal Invoice for your Payment.

火燒車  探火管滅火器   赤海龍滅火器    消防士
家用滅火器  車用滅火器
水海龍滅火器    赤海龍滅火器    赤海龍滅火器MRI

Fire Detection Tube Halon     AKA Halon    Water Halon     Fire Extinguisher MRI    CAR FIRE

FireExtinguisherPilot     FireExtinguisherBoat
AutopureTwHOME

e-Mail Us      Payment     SkyPe: autopure     mexa@autopure.com

ONLINE SALES
 www.taiwanwhite.com

fire extinguisher issuu   fire extinguisher water issuu

MEXA CO., LTD.  (Since 1979)
 The Best Fire Extinguisher Manufacturer in Taiwan
Tel. +886-2-23657700 Fax.+886-2-23657702

Office: 3F., No. 128 Ku Ling Street (GuLing Street), Taipei 100, Taiwan, R.O.C.

Factory :No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan 709, Taiwan Tel.09-1019-6666
67-00-3434 FACTORY MAP

www.autopure.com

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing extinguisher distinguisher fire extinguisher types

types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types

types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher

halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher

carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts
