Hose Clamp

Italian Type Hose Clamp

MX-13

1. The steel belt and housing to this production are 304H stainless steel material, the same hardness
      with the European and American famous factories. And with the same level production procedure. The hardness
      to the stainless steel belt can reach HRC380 degree and with the treatment of anti-Electrolytic.
2. The housing to this production is 304H high steel stainless steel material, with high tension and hard to
      be deformed, can raise up 30% twist value.
3. The screw to the production is manufactured by 5 processes. The accurate round degree can provide this
      production with good idle running frequency.
4. Materials #300 stainless steel series.

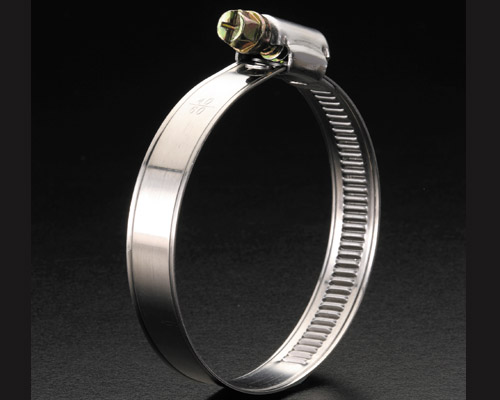

5. "X" grade's Italy type hose clamp (please check attached photo for MX-10 and MX-13)
6. MX-10 band: 10 mm: size is from 10 mm - 16mm till 140mm – 160 mm. Torque value is somewhere above
      7 Newton/meter.

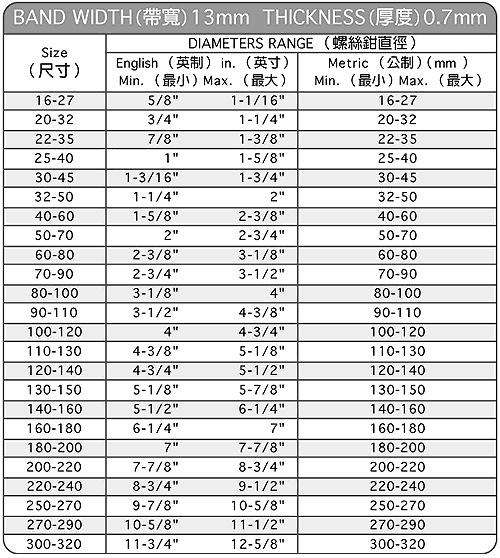

7. MX-13 band: 13 mm: size is from 16 mm – 27 mm till 300mm – 320 mm. Torque value is somewhere above
      10 Newton/meter.
8. The stuff combines all the goodness of USA and European system. The housing adopts the structure of USA type
      interlock. (As MX-01) And the band comes from Germany type wolf teeth. The combination creates one latest
      generation of hose clamp amongst all we make. It boosts its clamping degree and toughness incredibly.
9. The pulling strength is stronger. It can also be used in truck, trailer and bus. Only its output capacity is lower.

W 13mm


MX-01 American Type Interlock 12.70mm	MX-01N American Type Protective Interlock 12.70mm

MX-06 American Type Miniature 8--10mm	MX-168 American Type Miniature 6--8mm

MX-168-9 American Type Protective 9mm	MX-168-127 American Type Protective 12.70mm

MX-09 Germany Type 9mm	MX-09-12 Germany Type 12mm

MX-10 Italian Type 10mm	MX-13 Italian Type 13mm
