TUBELESS CLAMP-IN VALVE For Passenger and Light Truck

       TR416         TR416B        V2.04.1            TR435     TR522     PVR152

TR No.

ETRTO NO.

Rim Hole Ø (mm/Inch)

REF. Length (mm)

Core

Cap

Rubber Grommet

Washer

Nut

TR416

Ø16/0.625"

Ø17X40

C1

VC3-S

RG39

R13/RW13

HN4

TR416B

WH405

Ø11.5/0.453"

Ø17X38/34

C1

AT/BT

RG54/RG39

RW8

HN4

TR416S

V2.05.1

Ø11.5/0.453"

Ø17X40

C1

VC3-S

RG54

RW15

HN4

TR435

Ø11.5/0.453"

Ø16X36

C1

ANT/AT

RG54

RW8

HN4

V2.04.1

Ø11.5/0.453"

Ø17.5X35

C1

VC3-S

V9.07.1

V9.07.1

TRV522

Ø11.5/0.453"

Ø17.5X42

C1

VC3L

V801

RW15

V901

TR5991B

WH402

Ø16/0.625"

Ø19X34

C1

AT/BT

RG54/RG39

RW8

HN4

PVR152

Ø11.5/0.453"

Ø16X65-90¢X

C1

BT/ET

RG54

RW15

HN4

¡@

FRONT WHEEL DRIVE For Toronado and Dorado

TR417

TR No. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Nut
TR417 Ø11.5/0.453" Ø18X85-65¢X C1 VC8 RG54 HN4

¡@

FLUSH MOUNT VALVE  For Rim Hole Ø16mm (0.453")

PN518       CH-V        SP-V

¡@

TUBELESS CLAMP-IN VALE For Motorcycle

TR430A    TR416A    PVR30      PVR32

TR No. ETRTO NO. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Washer Nut
TR430A Ø8.5/0.335" Ø14X33 C1 VC8 RG59 RW12 HN2
JS430 V1.11.1 Ø8.5/0.335" Ø14X37 C1 VC8 RG59 RW12 HN2
TR416A VAMD161 Ø11.5/0.453" Ø16X34.5 C1 VC8 HRG1/HG2 RW12 HN2
PVR30 WH302/TR70A Ø11.5/0.453" Ø15X63-90¢X C1 VC8 HRG2/HG2 RW12 NH2
PVR32 WH312/TR70B Ø11.5/0.453" Ø15X54-90¢X C1 VC8 HRG4/HG4 SNM5
PVR79L PVR32L Ø11.5/0.453" Ø15X72-90¢X C1 VC8 HRG4/HG4 SNM5

TUBELESS CLAMP-IN VALVE For Passenger and Light Truck - Inner Mount Valve

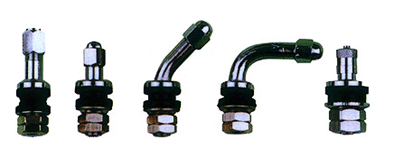

  TR43E     TR26G     VS-8-45     PVR30AE              TR6008C

TR No. ETRTO NO. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Washer Nut
TR33, WH23A V-3 Ø11.5/0.453" Ø14X33 C1 AT/BT/ET HRG2X2 WS1 HN2X2
TR43E, WH206 V-4 Ø11.5/0.453" Ø14X43 C1 AT/BT/ET HRG2X2 WS1 HN2X2
TR48E V-5 Ø11.5/0.453" Ø14X48 C1 AT/BT/ET HRG2X2 WS1 HN2X2
TR53E, WH204 V-6 Ø11.5/0.453" Ø14X53 C1 AT/BT/ET HRG2X2 WS1 HN2X2
TR63E V-7 Ø11.5/0.453" Ø14X63 C1 AT/BT/ET HRG2X2 WS1 HN2X2
TR26A V-8 Ø11.5/0.453" Ø16X34 C1 AT/BT HRG1/HG2 RW12 HN2X2
TR26G, PVR43A VS-8 Ø11.5/0.453" Ø16X38 C1 AT/BT HRG1/HG2 RW12 HN2X2
JS43E V-9 Ø11.5/0.453" Ø16X43 C1 AT/BT HRG1/HG2 RW12 HN2X2
WH303, PVR75A VS-8-45 Ø11.5/0.453" Ø16X53-45¢X C1 AT/BT HRG1/HG2 RW12 HN2X2
PVR30AE Ø11.5/0.453" Ø15X63-90¢X C1 BT/ET HRG2/HG2 RW12 HN2X2
TRJF944 TR6008C Ø16/0.625" Ø17.5X34 C1 VC3 HRG2/HG2 RW8 HN4X2

¡@

TUBELESS CLAMP-IN VALVE For Passenger and Light Truck - Inner Mount Valve

TR No. L1 L2 Rim Hole Ø (mm/Inch) Rubber Grommet Core Cap
TR271 21 39.5 Ø6/0.2363" HG2X2 C1 AT/BT/ET
TR272 27 45.5 Ø6/0.2363" HG2X2 C1 AT/BT/ET
TR273 11 29.5 Ø6/0.2363" HG2X2 C1 AT/BT/ET
TR274 24.2 39.5 Ø6/0.2363" HG2X2 C1 AT/BT/ET

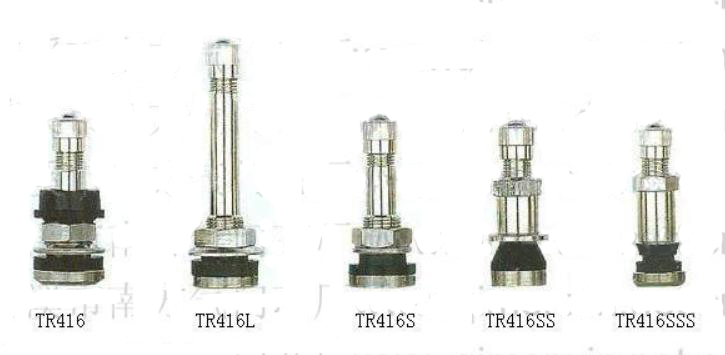

METAL (Brass Chrome) TYRE WHEEL VALVES WITH METAL CAP SUIT FORGED MAG WHEELS

TR No. ETRTO NO. L2 Rim Hole Ø (mm/Inch) Rubber Grommet Core Cap
TR416 2V2.05.2 Ø18.50X40 Ø16/0.625" C1 AT/BT/ET
TR416L TV-416L Ø16.70X59 Ø16/0.625" C1 AT/BT/ET
TR416S V2.05.1 Ø17X40 Ø11.50/0.453" C1 AT/BT/ET
TR416SS Ø14X38 Ø11.50/0.453" C1 AT/BT/ET
TR416SSS Ø14X39 Ø8.30/0.327" C1 AT/BT/ET


¡@

TUBELESS CLAMP-IN VALVE For Truck and Bus - With O-Ring Seal for Alcoa Wheel 9.7mm (0.390") rim hole.

TR543            TR545D

TR No. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Nut
TR542 Ø9.7/0.390" Ø16X37 C1 VC2/VC3 RG60 HN21
TR543  Ø9.7/0.390" Ø16X64 C1 VC2/VC3 RG60 HN21
TR543C Ø9.7/0.390" Ø16X64-45¢X C1 VC2/VC3 RG60 HN22
TR543D Ø9.7/0.390" Ø16X64-60¢X C1 VC2/VC3 RG60 HN21
TR543E Ø9.7/0.390" Ø16X64-75¢X C1 VC2/VC3 RG60 HN21
TR544 Ø9.7/0.390" Ø16X78 C1 VC2/VC3 RG60 HN21
TR544D Ø9.7/0.390" Ø16X78-60¢X C1 VC2/VC3 RG60 HN21
TR544E Ø9.7/0.390" Ø16X78-75¢X C1 VC2/VC3 RG60 HN21
TR545 Ø9.7/0.390" Ø16X94 C1 VC2/VC3 RG60 HN21
TR545D Ø9.7/0.390" Ø16X94-60¢X C1 VC2/VC3 RG60 HN21
TR545E Ø9.7/0.390" Ø16X94-75¢X C1 VC2/VC3 RG60 HN21
TR546 Ø9.7/0.390" Ø16X113 C1 VC2/VC3 RG60 HN21
TR546-36 Ø9.7/0.390" Ø16X113-36¢X C1 VC2/VC3 RG60 HN21
TR546D Ø9.7/0.390" Ø16X113-60¢X C1 VC2/VC3 RG60 HN21
TR546E Ø9.7/0.390" Ø16X113-75¢X C1 VC2/VC3 RG60 HN21
TR547D Ø9.7/0.390" Ø16X124-60¢X C1 VC2/VC3 RG60 HN21

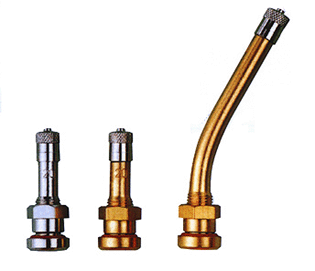

V3.20.1                  V3.20.4

ETRTO NO. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Nut
V3.20.1 Ø9.7/0.390" Ø16X41 C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.2 Ø9.7/0.390" Ø16X95-17.5¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.3 Ø9.7/0.390" Ø16X82 C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.4 Ø9.7/0.390" Ø16X90-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.5 Ø9.7/0.390" Ø16X70-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.6 Ø9.7/0.390" Ø16X115-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.7 Ø9.7/0.390" Ø16X80-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.8 Ø9.7/0.390" Ø16X119-12¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.9 Ø9.7/0.390" Ø16X102-12¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.10 Ø9.7/0.390" Ø16X80-28¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.11 Ø9.7/0.390" Ø16X100-27¢X/42¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
V3.20.12 Ø9.7/0.390" Ø16X100-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2
150MS-27 Ø9.7/0.390" Ø16X150-27¢X C1 VC2/VC3 RG60/V9.11.5 V9.07.2

TR501    TR570    TR575     TR570C

TR No. ETRTO NO. REF. Length (mm) Core Cap Rubber Grommet Washer Nut
TR500 V3.21.3 Ø19X55 C1 VC2/VC3 RG15 RW8 HN13
TR501 V3.21.2 Ø19X42 C1 VC2/VC3 RG15 RW8 HN13
TR502 64MS15.7 Ø19X64 C1 VC2/VC3 RG15 RW8 HN13
TR570 V3.21.4 Ø19X84 C1 VC2/VC3 RG15 RW8 HN13
TR571 V3.21.5 Ø19X90 C1 VC2/VC3 RG15 RW8 HN13
TR572 V3.21.6 Ø19X100 C1 VC2/VC3 RG15 RW8 HN13
TR573 V3.21.7 Ø19X115 C1 VC2/VC3 RG15 RW8 HN13
TR574 V3.21.8 Ø19X131 C1 VC2/VC3 RG15 RW8 HN13
TR575 V3.21.1 Ø19X33 C1 VC2/VC3 RG15 RW8 HN13
TR570C V3.21.9 Ø19X84-90¢X C1 VC2/VC3 RG15 RW8 HN13
TR571C V3.21.10 Ø19X90-90¢X C1 VC2/VC3 RG15 RW8 HN13
TR572C V3.21.11 Ø19X100-90¢X C1 VC2/VC3 RG15 RW8 HN13

TR573C

V3.21.12

Ø19X115-90¢X

C1

VC2/VC3

RG15

RW8

HN13

TR574C

Ø19X131-90¢X

C1

VC2/VC3

RG15

RW8

HN13

TR500-23

VS-1223R

Ø19X55-23¢X

C1

VC3

RG15

RW8

HN13

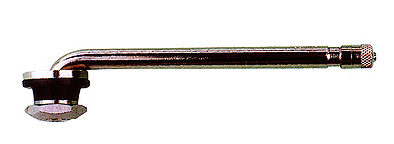

TR509

TR No. ETRTO NO. Rim Hole Ø(mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Nut
TR509 8713 Ø16/0.625" Ø23X138.5-90¢X C1 VC2/VC3 RG46 HN17
TR510 8717 Ø16/0.625" Ø23X157.5-90¢X C1 VC2/VC3 RG46 HN17
TR511 8711 Ø16/0.625" Ø23X126-90¢X C1 VC2/VC3 RG46 HN17

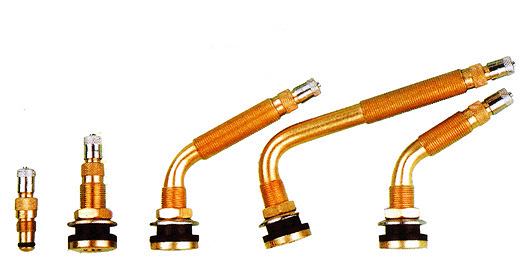

TRCH3  TR618A    TR621A         TR622A           TR623A

TR No. ETRTO NO. Rim Hole Ø (mm/Inch) REF. Length (mm) Core Cap Rubber Grommet Nut
TRCH3 V4.02.1 Ø16/0.625" Ø11X36 C1 VC2/VC3
TR618A V5.01.1 Ø16/0.625" Ø22.5X30/51 TRCH3 RG7 HN1
TR621A V5.02.1 Ø16/0.625" Ø22.5X93/113-65¢X TRCH3 RG7 HN1
TR622A V5.02.2 Ø16/0.625" Ø22.5X137/158-90¢X TRCH3 RG7 HN1
TR623A V5.02.3 Ø16/0.625" Ø22.5X74/95-65¢X TRCH3 RG7 HN1

¡@
