TIRE VALVE PARTS

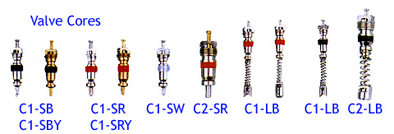

MX NO.	TR NO.	Description
C1-SB	C1	Short valve core, Ni plated, Black
C1-SBY	C1	Short valve core, Ye.Dip Black
C1-SR	C1	Short valve core, H.T. Ni plated, Red
C1-SRY	C1	Short valve core, H.T. Ye.Dip Red
C1-SW	C1	Short valve core, Freon Gas Resistant
C2-SB	C2	Large bore core, Short, Black
C2-SR	C2	Large bore core, Short, Red, H.T.
C2-LB	C2	Large bore core, Long, Black
C2-LR	C2	Large bore core, Long, Red, H.T.
C1-LB	C1	Long valve core, Ni plated, Black
C1-LR	C1	Long valve core, H.T. Ni plated, Red

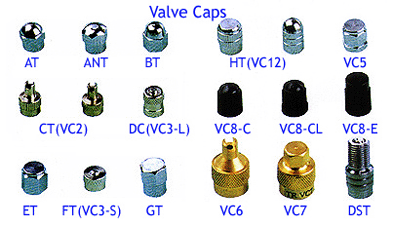

MX NO.	TR/REF N0.	Fits Thd.	Description
AT	N-1202	8V1	Chrome Hexagon Head Cap
ANT		8V1	Long Dome Chrome Hex Head Cap
BT		8V1	Dome Chrome Hex Cap
CT	VC2	8V1	Metal Screwdriver Cap, Ni Plated/Yellow Dip
DT	VC3-L	8V1	Long Metal Dom Cap, Ni or Cr Plated
ET		8V1	Hex Metal Cap, Ni or Cr Plated
FT	VC3-S	8V1	Short Metal Dome Cap, Ni Plated
GT		8V1	Long Skirted Hex Chrome or Ni Plated
HT	VC12	8V1	H.D. Metal Truck Cap, Ni or Cr Plated
VC5	VC5	8V1	Airplane Valve Cap Chrome Plated
VC6	VC6	8V1	Large Bore Screwdriver Top Cap
VC7	VC7	8V1	Large Bore Hexagon Top Cap
VC8-C	VC8	8V1	Plastic Cap Black
VC8-CL	VC8	8V1	Plastic Sealing Cap Black
VC8-E	VC8	8V1	Plastic Screwdriver Cap Black
DST	N-1121	8V1	Double Seal Cap

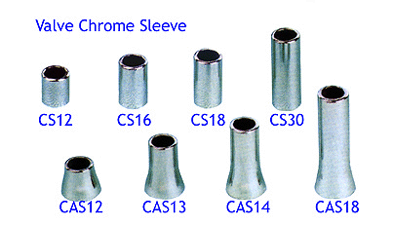

MX NO.	For
CS12	TR413
CS16	TR413 or TR414
CS18	TR414 or TR414L
CS22	TR414L
CS30	TR418
CAS12	TR412
CAS13	TR413
CAS14	TR414
CAS14L	TR414L
CAS18	TR418
