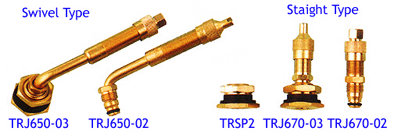

OFF-ROAD (LARGE BORE) TUBELESS VALVE

TR NO.

ETRTO NO.  (REF. NO.)

Rim Hole Ø (mm/Inch)

REF. Length (mm)

Parts

TR SP2 Spud

Valve No.

Stem No.

Core

Cap

O-Ring

Rubber Grommet

Nut

Hex Spud

TRJ650-03

TRJ650-02

V5.04.1

Ø20.5/0.812"

S13X27.5/79-80¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

TRJ651-03

TRJ651-02

V5.04.2

Ø20.5/0.812"

S13X32/119-90¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

TRJ652-03

TRJ652-02

Ø20.5/0.812"

S13X27.5/140-86¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

TRJ653-03

TRJ653-02

Ø20.5/0.812"

S13X27.5/63.5-80¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

TRJ654-03

TRJ654-02

Ø20.5/0.812"

S13X27.5/79-60¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

TRJ655-03

TRJ655-02

Ø20.5/0.812"

S13X27.5/79-74¢X

C2

VC6/VC7

HRG35 (V9.11.3)

RG22

HN15

HS2

Straight Type Valve

TR NO.  ETRTO NO.  (REF. NO.) Rim Hole Ø( mm/Inch) REF. Length (mm) Parts TR SP2 Spud
Valve No.  Stem No. Core Cap O-Ring Rubber Grommet Nut Hex Spud
TRJ670-03 TRJ670-03 V5.03.1 Ø20.5/0.812" S13X41.5 C2 VC6/VC7 HRG35 (V9.11.3) TR SP2
TRSP2 V5.10.1 Ø20.5/0.812" S27X17 C2 VC6/VC7 HRG35 (V9.11.3) RG22 HN15 HS2

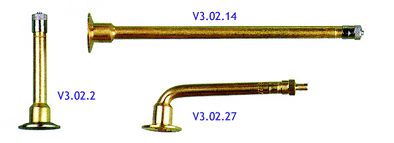

INNER TUBELESS Truck and Bus VALVE - Screw On Universal Valve

(REF. NO.) REF. Length (mm) Parts ¡@ DC NO.              (REF. NO.) REF. Length (mm) Parts
Core Cap ¡@ Core Cap
V3.02.2 Ø24X25.5/43-60¢X C1 VC2/VC3 V3.02.17 Ø24X23.5/156.5-90¢X C1 VC2/VC3
V3.02.3 Ø24X36/44.5-85¢X C1 VC2/VC3 V3.02.18 Ø24X23.5/74.5-90¢X C1 VC2/VC3
V3.02.4 Ø24X42.5/44.5-70¢X C1 VC2/VC3 V3.02.19 Ø24X23.5/60-86¢X C1 VC2/VC3
V3.02.5 Ø24X23.5/47.5-90¢X C1 VC2/VC3 V3.02.20 Ø24X23.5/56.5-85¢X C1 VC2/VC3
V3.02.7 Ø24X25.5/71.5-80¢X C1 VC2/VC3 V3.02.21 Ø24X23.5/172-90¢X C1 VC2/VC3
V3.02.8 Ø24X23.5/89.5-86¢X C1 VC2/VC3 V3.02.22 Ø24X35.5/117.5-86¢X C1 VC2/VC3
V3.02.9 Ø24X23.5/99.5-86¢X C1 VC2/VC3 V3.02.23 Ø24X42.5/66.5-90¢X C1 VC2/VC3
V3.02.10 Ø24X23.5/115-86¢X C1 VC2/VC3 V3.02.24 Ø24X23.5/117-90¢X C1 VC2/VC3
V3.02.11 Ø24X23/126-82¢X C1 VC2/VC3 V3.02.25 Ø24X30/160-92¢X C1 VC2/VC3
V3.02.12 Ø24X23.5/132-86¢X C1 VC2/VC3 V3.02.26 Ø24X23.5/105-86¢X C1 VC2/VC3
V3.02.13 Ø24X23.5/133.5-90¢X C1 VC2/VC3 V3.02.27 Ø24X23/75-86¢X C1 VC2/VC3
V3.02.14 Ø24X23.5/138.5-86¢X C1 VC2/VC3 V3.02.29 Ø24X23/127-86¢X C1 VC2/VC3
V3.02.15 Ø24X23.5/145.5-86¢X C1 VC2/VC3
V3.02.16 Ø24X23.5/149.5-90¢X C1 VC2/VC3

RUBBER SPUD

REF. NO.

REF. Length (mm)

V3.08.1

Ø65X7/10

V3.08.2

Ø70X7/10

V3.08.3

Ø80X8/10

V3.08.4

Ø57X5/10

V9.05.1

Ø24/Ø8X3

¡@
