RIM VALVE
|
ETRTO NO. |
Rim Hole Ø (mm/Inch) |
REF. Length (mm) |
||||
|

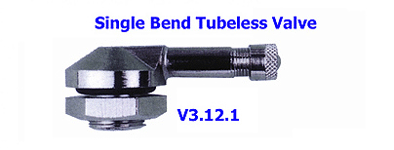

V3.12.1 |
Ø15.7/0.625" |
Ø26X21.5X40 |
C1 |
VC2/VC3 |
V9.11.4 |
V9.13.1 |
|
V3.12.2 |
Ø15.7/0.625" |
Ø26X21.5X95 |
C1 |
VC2/VC3 |
V9.11.4 |
V9.13.1 |
| ETRTO NO. | Rim Hole Ø (mm/Inch) | REF. Length (mm) | Core | Cap | Rubber Grommet | Nut |

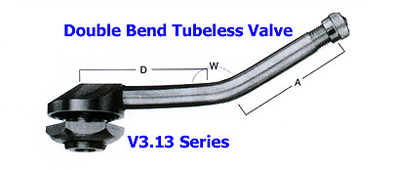

| V3.13.1 | Ø15.7/0.625" | D46.5XA42.5XW153¢X | C1 | VC2/VC3 | V9.11.4 | V9.13.1 |
| V3.13.2 | Ø15.7/0.625" | D30XA79XW126¢X | C1 | VC2/VC3 | V9.11.4 | V9.13.1 |
| ETRTO NO. | Rim Hole Ø (mm/Inch) | REF. Length (mm) | Core | Cap | Rubber Grommet | Nut |
| V3.14.1 | Ø15.7/0.625" | L71XH14 | C1 | VC2/VC3 | V9.11.4 | V9.13.1 |
| V3.14.2 | Ø15.7/0.625" | L91XH14 | C1 | VC2/VC3 | V9.11.4 | V9.13.1 |
| V3.14.3 | Ø15.7/0.625" | L81XH14 | C1 | VC2/VC3 | V9.11.4 | V9.13.1 |
| ETRTO NO. | Rim Hole Ø (mm/Inch) | REF. Length (mm) | Core | Cap | Rubber Grommet | Nut |

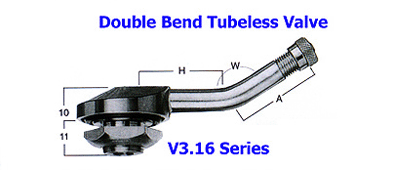

| V3.16.1 | Ø20.5/0.812" | D36XA29XW150¢X | C1 | VC2/VC3 | V9.11.2 | V9.13.1 |
|
ETRTO NO. |
Rim Hole Ø (mm/Inch) |
REF. Length (mm) |
||||
|

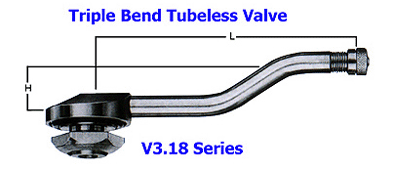

V3.18.1 |
Ø20.5/0.812" |
L110XH14.5 |
C1 |
VC2/VC3 |
V9.11.2 |
V9.13.1 |
|
V3.18.2 |
Ø20.5/0.812" |
L127XH14.5 |
C1 |
VC2/VC3 |
V9.11.2 |
V9.13.1 |
|
V3.18.4 |
Ø20.5/0.812" |
L110XH19.5 |
C1 |
VC2/VC3 |
V9.11.2 |
V9.13.1 |
|
V3.18.5 |
Ø20.5/0.812" |
L127XH19.5 |
C1 |
VC2/VC3 |
V9.11.2 |
V9.13.1 |
¡@
